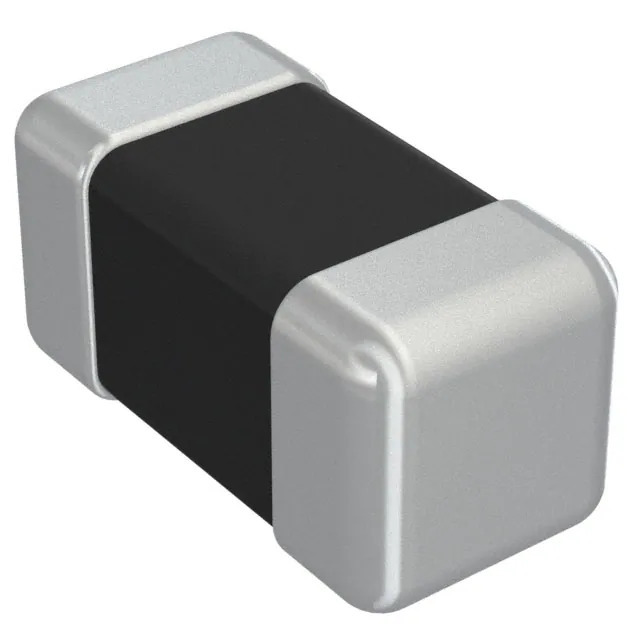

MPZ0603S220HT000 TDK Corporation
Same model may have multiple batches, images only for reference.

MPZ0603S220HT000

Part No MPZ0603S220HT000
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 22 OHM 0201 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr TDK Corporation
Series MPZ-H
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 22 Ohms @ 100 MHz
Current Rating (Max) 1.9A
DC Resistance (DCR) (Max) 36mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0201 (0603 Metric)
Mounting Type Surface Mount
Height (Max) 0.013" (0.33mm)
Size / Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369294-MPZ0603S220HT000
Ultra Librarian 3D Model Ultra Librarian MPZ0603S220HT000 CAD Model

Description

The MPZ0603S220HT000 is a ferrite bead and chip filter manufactured by TDK Corporation.

  • Category: Filters - Ferrite Beads and Chips
  • Temperature Range: -55°C ~ 125°C
  • Size / Dimension: 0.024" L x 0.012" W (0.60mm x 0.30mm)
  • Height (Max): 0.013" (0.33mm)
  • Filter Type: Power Line
  • Number of Lines: 1
  • Impedance @ Frequency: 22 Ohms @ 100 MHz
  • Current Rating (Max): 1.9A
  • DC Resistance (DCR) (Max): 36mOhm
  • Mounting Type: Surface Mount
  • Package / Case: 0201 (0603 Metric)
  • Status: Active
  • Packaging: Tape & Reel (TR)
