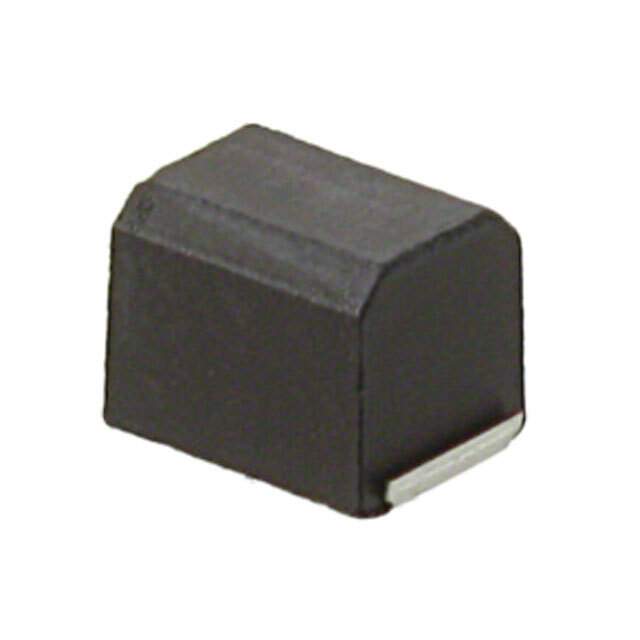

The NLFC453232T-221K is a wound ferrite chip inductor manufactured by TDK Corporation. This inductor is designed for use in high-frequency circuits and is commonly used for impedance matching, noise filtering, and signal tuning in various electronic devices.

Applications:

• Mobile communication devices: Used for impedance matching in RF circuits.
• Wireless LAN devices: Provides noise filtering and signal tuning.
• Bluetooth modules: Used in impedance matching networks.
• High-frequency circuits: General-purpose inductor for high-frequency applications.
• Power supply circuits: Used for noise filtering and energy storage.

Features:

• Wound ferrite construction: Provides high inductance and high Q factor.
• Small size: Compact size suitable for space-constrained applications.
• High self-resonant frequency: Operates effectively at high frequencies.
• Excellent Q characteristics: Provides sharp filtering and tuning.
• RoHS compliant: Complies with Restriction of Hazardous Substances directive.

Benefits:

• Improved signal quality: Provides effective noise filtering.
• Efficient impedance matching: Improves signal transfer.
• Compact design: Saves valuable board space.

Additional Details:

The NLFC453232T-221K has an inductance value of 220μH with a tolerance of 10%. It is designed for reflow soldering and is suitable for automated assembly. Consult the manufacturer's datasheet for complete electrical specifications, including self-resonant frequency, Q factor, and DC resistance.
