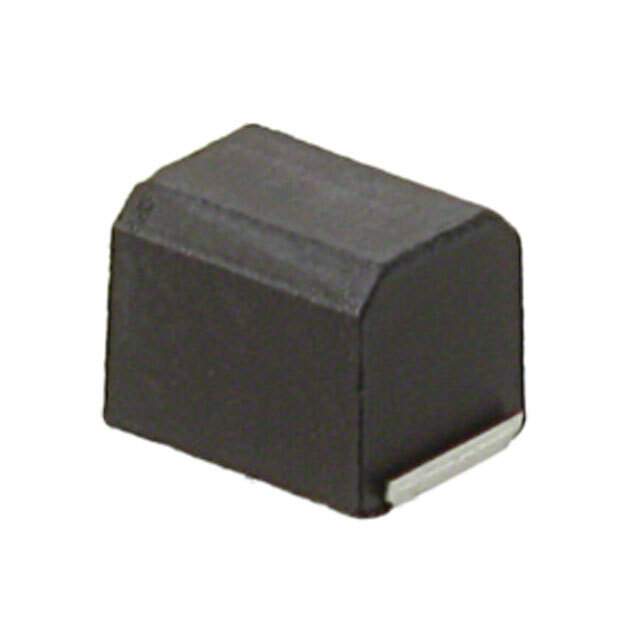

The NLFC453232T-2R2M is a ferrite chip inductor from TDK Corporation. It's designed for noise suppression, impedance matching, and filtering in various electronic circuits.

Applications:

• Noise Suppression: Used for suppressing noise in power lines and signal lines.
• Impedance Matching: Employed in impedance matching circuits for RF applications.
• Filtering Circuits: Used in LC filters to reduce noise and ripple.
• Portable Devices: Found in smartphones, tablets, and other portable devices for noise filtering.
• Automotive Electronics: Used in automotive electronics for noise suppression and filtering.

Features:

• Ferrite Core: Ferrite core material provides high impedance at high frequencies.
• Small Size: Small footprint for space-constrained applications.
• High Self-Resonant Frequency (SRF): High SRF ensures effective noise suppression at high frequencies.
• High Impedance: High impedance over a wide frequency range.
• RoHS Compliant: Compliant with RoHS directives for environmental protection.
• Surface Mount Device (SMD): Suitable for automated assembly processes.

Benefits:

• Effective Noise Suppression: Effectively suppresses noise in electronic circuits.
• Compact Design: Small size allows for compact and lightweight designs.
• Reliable Performance: Ferrite core ensures reliable performance over a wide temperature range.
• Easy Assembly: Surface mount design simplifies assembly and reduces manufacturing costs.
• Improved Signal Integrity: Reduces noise and improves signal integrity.

Additional Details:

The NLFC453232T-2R2M has an inductance value of 2.2 μH (microhenries). The rated current and DC resistance are important parameters. The operating temperature range is typically from -40°C to +85°C. Proper soldering techniques are essential to ensure reliable connection. The specific ferrite material is chosen to optimize performance at the intended operating frequency. This component is commonly used for EMI suppression.
