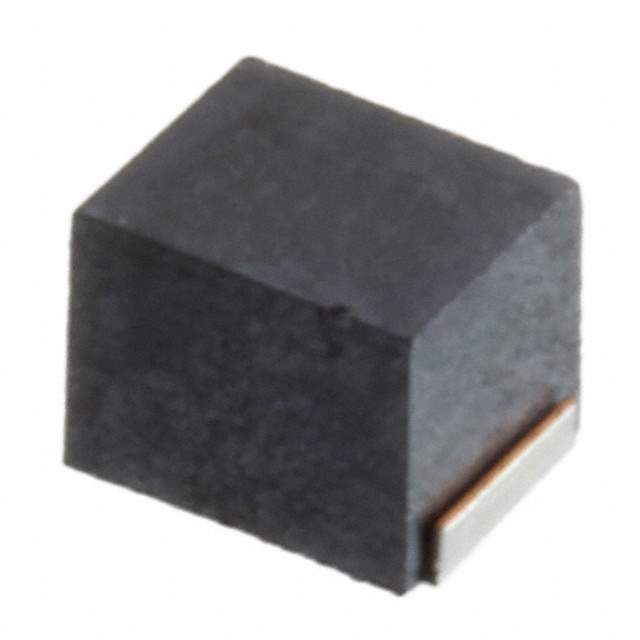

NLFV32T-102K-EF Real Image
Same model may have multiple batches, images only for reference.

NLFV32T-102K-EF

Part No NLFV32T-102K-EF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1MH 20MA 27 OHM SMD / 1 mH Shielded Drum Core, Wirewound Inductor 20 mA 27Ohm Max 1210 (3225 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series NLFV
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 mH
Tolerance ±10%
Current Rating (Amps) 20 mA
Shielding Shielded
DC Resistance (DCR) 27Ohm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 252 kHz
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210 (3225 Metric)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.094" (2.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-15760-1,445-15760-2,445-15760-6
Standard Package 2,000
Win Source Part Number 1107865-NLFV32T-102K-EF
Ultra Librarian 3D Model Ultra Librarian NLFV32T-102K-EF CAD Model

Description

The NLFV32T-102K-EF is a fixed inductor that is widely used in various electronic circuits. Bold the product name (e.g., BAV99S,135 → BAV99S,135) and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Shielded: Yes
  • Inductance: 1 mH
  • Tolerance: ±10%
  • DC Resistance (DCR): 27Ohm Max
  • Height: 0.094" (2.40mm)
  • Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
