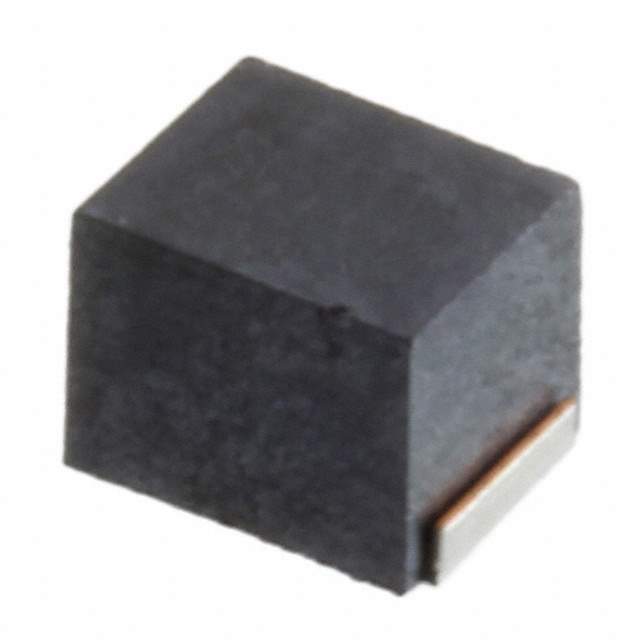

NLFV32T-3R3M-EF Real Image
Same model may have multiple batches, images only for reference.

NLFV32T-3R3M-EF

Part No NLFV32T-3R3M-EF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 420MA 110 MOHM
Datasheet
NLFV32T-3R3M-EF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating 420mA
DC Resistance (DCR) 132 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 7.96MHz
Mounting SMD (SMT)
Case / Package 1210 (3225 Metric)
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 025571-NLFV32T-3R3M-EF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NLFV32T-3R3M-EF CAD Model

Description

The TDK Corporation 025571-NLFV32T-3R3M-EF is a wirewound inductor with a current rating of 420mA and an inductance of 3.3μH.

  • Current Rating: 420mA
  • Inductance: 3.3μH
  • Core Material: ferrite
  • Tolerance: ±20%
  • Mounting Type: SMD (SMT)
  • Maximum Seated Height: 0.094" (2.40mm)
  • Frequency Test: 7.96MHz
  • Temperature Range: -40°C to 105°C
  • DC Resistance (DCR): 132 mOhm Max
  • Package: 1210 (3225 Metric)
