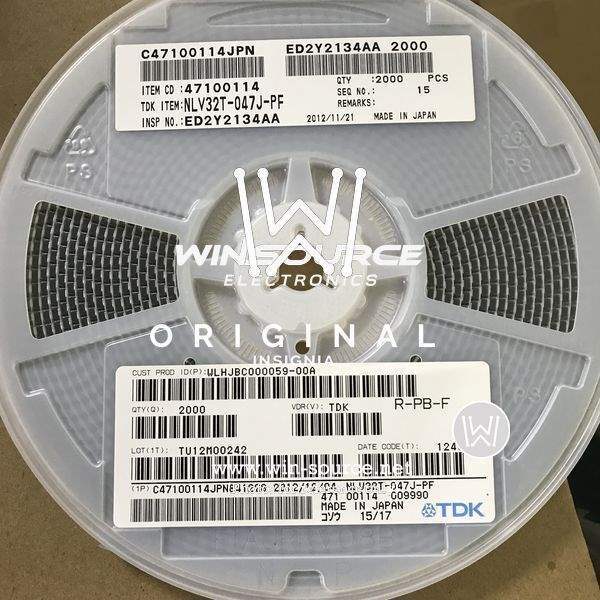

NLV32T-047J-PF Real Image NLV32T-047J-PF label picture
Same model may have multiple batches, images only for reference.
NLV32T-047J-PF Real Image NLV32T-047J-PF label picture
NLV32T-047J-PF Real Image NLV32T-047J-PF label picture
Same model may have multiple batches, images only for reference.

NLV32T-047J-PF

Part No NLV32T-047J-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 47NH 450MA 300 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 47nH
Tolerance ±5%
Current Rating 450mA
DC Resistance (DCR) 300 mOhm Max
Q @ Freq 26 @ 100MHz
Frequency - Self Resonant 1.2GHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100MHz
Mounting SMD (SMT)
Case / Package 1210
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 025598-NLV32T-047J-PF
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian NLV32T-047J-PF CAD Model

Description

The NLV32T-047J-PF is a wirewound inductor manufactured by TDK Corporation.

  • Current Rating: 450mA
  • Inductance: 47nH
  • Tolerance: ±5%
  • Core Material: Ferrite
  • Package/Case: 1210
  • DC Resistance (DCR): 300 mOhm Max
  • Operating Temperature Range: -40°C to 105°C
  • Height: 0.094" (2.40mm)
  • Supply and Demand Status: Sufficient
  • Quantity per Package: 2k pcs
  • ECCN: EAR99
