Same model may have multiple batches, images only for reference.

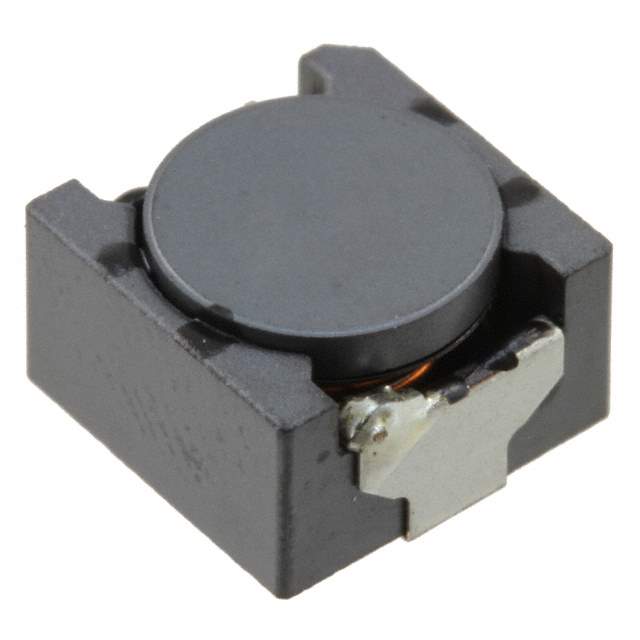

RLF10160T-470M1R5-D Real Image
Same model may have multiple batches, images only for reference.

RLF10160T-470M1R5-D

Part No RLF10160T-470M1R5-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 47UH 1.5A 111.6MOHM SM
Datasheet
RLF10160T-470M1R5-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features 47 µH Shielded Wirewound Inductor 1.5 A 111.6mOhm Max Nonstandard
Manufacturer TDK Corporation
Series RLF-D
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 150°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 445-16645-6, RLF10160T-470M1R5-D-ND, 445-16645-2, 445-16645-1
Quantity per package 500
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891963-RLF10160T-470M1R5-D
Ultra Librarian 3D Model Ultra Librarian RLF10160T-470M1R5-D CAD Model

Description

The TDK Corporation RLF10160T-470M1R5-D is a high popularity electronic component.

  • Series: RLF-D
  • Operating Temperature: -40°C ~ 150°C
  • Inductance: 47 µH
  • Shielded: Wirewound
  • Maximum Current: 1.5 A
  • DC Resistance: 111.6mOhm
  • Package: Reel - TR and Nonstandard
  • Mounting Type: Surface Mount
  • Part Status: Not For New Designs
  • Manufacturer Homepage: www.tdk.com
