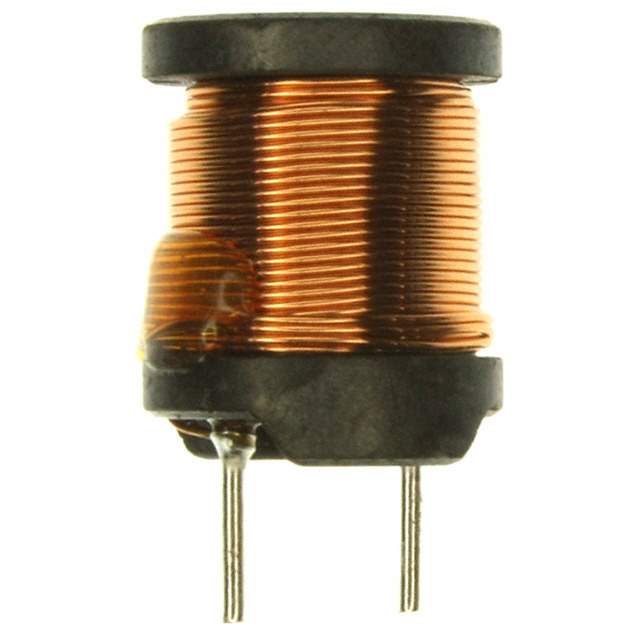

The SL1215-102KR51-PF is a shielded power inductor manufactured by TDK Corporation, designed for high-efficiency power conversion in a variety of applications. This inductor features a compact design and robust construction, making it suitable for use in demanding environments. It provides stable inductance and low DC resistance, essential for efficient power management.

Applications:


• DC-DC Converters: Used in step-up (boost), step-down (buck), and flyback converters.

• Power Supplies: Suitable for use in regulated power supplies for various electronic devices.

• LED Lighting: Used in LED drivers to provide stable and efficient power to LEDs.

• Automotive Electronics: Employed in automotive power circuits for reliable performance.

• Industrial Equipment: Used in power supplies and control circuits for industrial machinery.

Features:


• Shielded Construction: Minimizes electromagnetic interference (EMI) for cleaner operation.

• Compact Size: 12.5 x 12.5 x 15mm dimensions for space-saving designs.

• Low DC Resistance (DCR): Reduces power losses and improves overall efficiency.

• High Current Capacity: Handles high current without saturation, ensuring stable performance.

• Excellent Inductance Stability: Maintains inductance value over a wide range of temperatures.

• Robust Construction: Provides high reliability and durability in demanding environments.

Benefits:


• Improved Power Efficiency: The low DCR minimizes power dissipation, leading to higher efficiency.

• Reduced EMI Noise: The shielded construction effectively reduces electromagnetic interference.

• Smaller Footprint: The compact size allows for greater component density on the PCB.

• Enhanced Reliability: Stable inductance ensures consistent performance over time and temperature.

• Stable Operation: Maintains inductance over varying temperatures and currents, leading to stable power circuit performance.

Additional Details:

The SL1215-102KR51-PF inductor has an inductance value of 1000μH (102 indicated in the part number). It's designed for high-frequency operation, making it suitable for modern DC-DC converters. The shielded construction ensures minimal EMI, which is critical in sensitive electronic devices and automotive applications. TDK's advanced materials and manufacturing techniques guarantee high reliability and consistent performance under various conditions. It is RoHS compliant.
