Same model may have multiple batches, images only for reference.

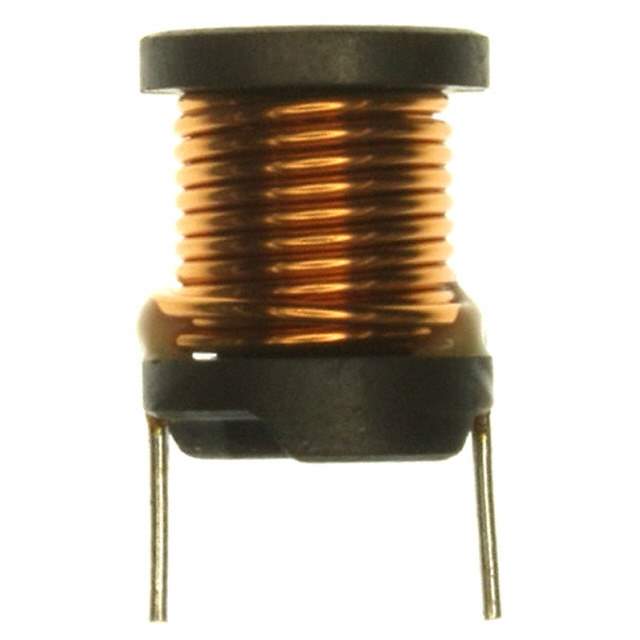

SL1215-220K2R8-PF Real Image
Same model may have multiple batches, images only for reference.

SL1215-220K2R8-PF

Part No SL1215-220K2R8-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Datasheet
SL1215-220K2R8-PF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SL
Package Tray
Product Status Obsolete
Type Wirewound
Inductance 22 µH
Tolerance ±10%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 7.2A
Shielding Unshielded
DC Resistance (DCR) 31mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Other Names -SL1215-220K2R8,445-3788
Standard Package 300
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272696-SL1215-220K2R8-PF
Ultra Librarian 3D Model Ultra Librarian SL1215-220K2R8-PF CAD Model

Description

The SL1215-220K2R8-PF is a fixed inductor manufactured by TDK Corporation.

  • Type: Wirewound Inductor
  • Inductance: 22 µH
  • Tolerance: ±10%
  • DC Resistance: 31 mOhm
  • Current Rating: 2.8 A
  • Package/Case: Radial, vertical cylinder (open)
  • Mounting: Through Hole
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
