Same model may have multiple batches, images only for reference.

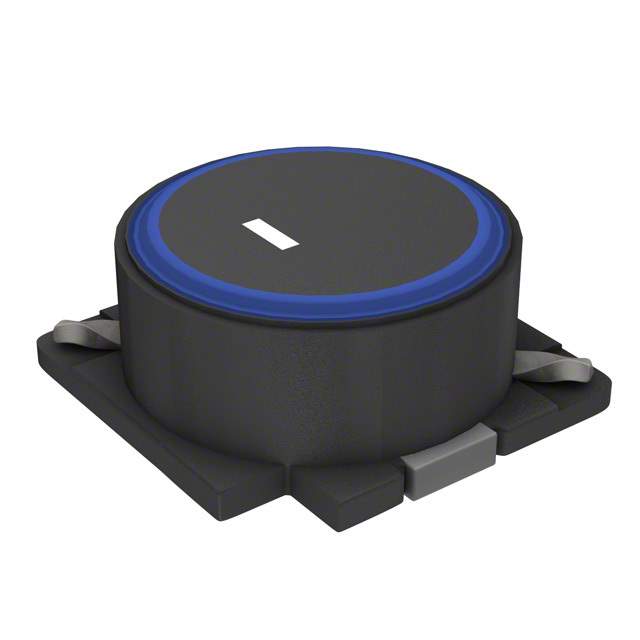

SLF12565T-330M2R8-H Real Image
Same model may have multiple batches, images only for reference.

SLF12565T-330M2R8-H

Part No SLF12565T-330M2R8-H
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 33UH 2.8A 40.6 MOHM / Inductor Power Shielded Wirewound 33uH 20% 1KHz Ferrite 3.4A 0.04872Ohm DCR Automotive T/R
Datasheet
SLF12565T-330M2R8-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series SLF-H
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 33μH
Tolerance ±20%
Current Rating 2.8A
Current - Saturation 2.8A
Shielding Shielded
DC Resistance (DCR) 48.72 mOhm Max
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 125°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Maximum) 0.270" (6.85mm)
Win Source Part Number 794521-SLF12565T-330M2R8-H
Popularity Medium
Supply and Demand Status Limited
Family Name SLF-H
Introduction Date August 03, 1999
ECCN EAR99
Country of Origin China, Philippines, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SLF12565T-330M2R8-H CAD Model

Description

The TDK Corporation SLF-H series wirewound inductor has a 33μH inductance and is shielded.

  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 2.8A
  • Maximum DC Resistance: 48.72 mOhm
  • Mounting Type: Surface mount
  • AEC-Q200 Rated: Yes
  • Popularity: Medium (81 pct)
