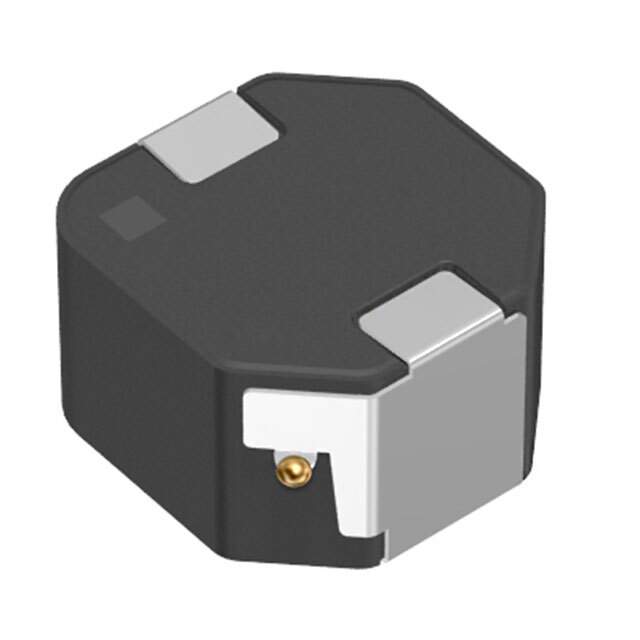

SPM10065VT-3R3M-D Real Image
Same model may have multiple batches, images only for reference.

SPM10065VT-3R3M-D

Part No SPM10065VT-3R3M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 14.5 A
Current - Saturation (Isat) 21.1A
Shielding Shielded
DC Resistance (DCR) 6mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.394" W (10.50mm x 10.00mm)
Height - Seated (Max) 0.256" (6.50mm)
Other Names 445-SPM10065VT-3R3M-DCT,445-SPM10065VT-3R3M-DTR,445-SPM10065VT-3R3M-DDKR
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272516-SPM10065VT-3R3M-D
Ultra Librarian 3D Model Ultra Librarian SPM10065VT-3R3M-D CAD Model

Description

The SPM10065VT-3R3M-D is a product of TDK Corporation and belongs to the Fixed Inductors category.

  • Type: Drum core, wirewound, shielded
  • Inductance: 3.3μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 6mOhm
  • Operating Temperature: -55°C to 155°C
  • Current Rating: 14.5A
  • Saturation Current: 21.1A
  • Package/Case: Non-standard
  • Standard Package: 500
  • AEC-Q200: Yes
  • ECCN: EAR99
  • Dimension: 0.413" L x 0.394" W (10.50mm x 10.00mm)
  • Popularity: Low
