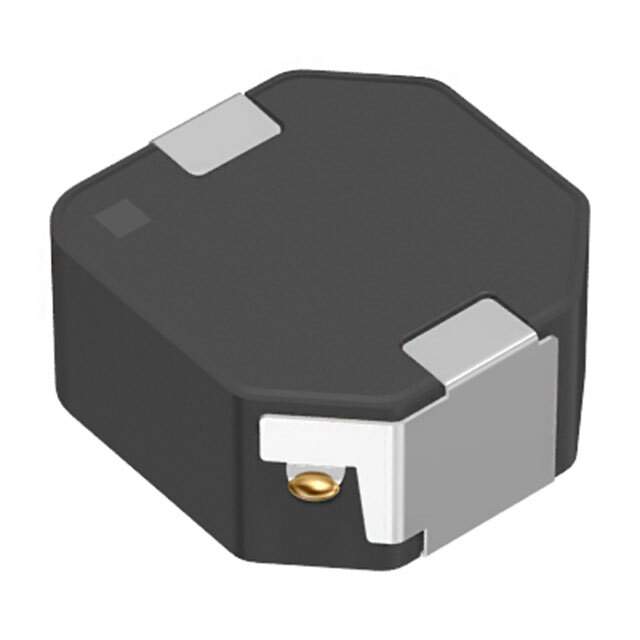

SPM12565VT-220M-D Real Image
Same model may have multiple batches, images only for reference.

SPM12565VT-220M-D

Part No SPM12565VT-220M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 6.9 A
Current - Saturation (Isat) 10.4A
Shielding Shielded
DC Resistance (DCR) 31mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" L x 0.492" W (13.00mm x 12.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Other Names 445-SPM12565VT-220M-DTR,445-SPM12565VT-220M-DDKR,445-SPM12565VT-220M-DCT
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272519-SPM12565VT-220M-D
Ultra Librarian 3D Model Ultra Librarian SPM12565VT-220M-D CAD Model

Description

The SPM-VT-D series drum core inductor from TDK Corporation is a shielded wirewound inductor with an inductance of 22 µH and a tolerance of ±20%.

  • Series: SPM-VT-D
  • Type: Drum core, Wirewound, Shielded
  • Core Material: Metal composite
  • Inductance: 22 µH
  • Tolerance: ±20%
  • DC Resistance: 31mOhm
  • Current Rating: 6.9 A
  • Height: 0.256" (6.50mm)
  • Dimension: 0.512" L x 0.492" W (13.00mm x 12.50mm)
  • Operating Temperature: -55°C to 155°C
  • AEC-Q200: Yes
  • Applications: Power supplies, DC-DC converters, and automotive electronics
