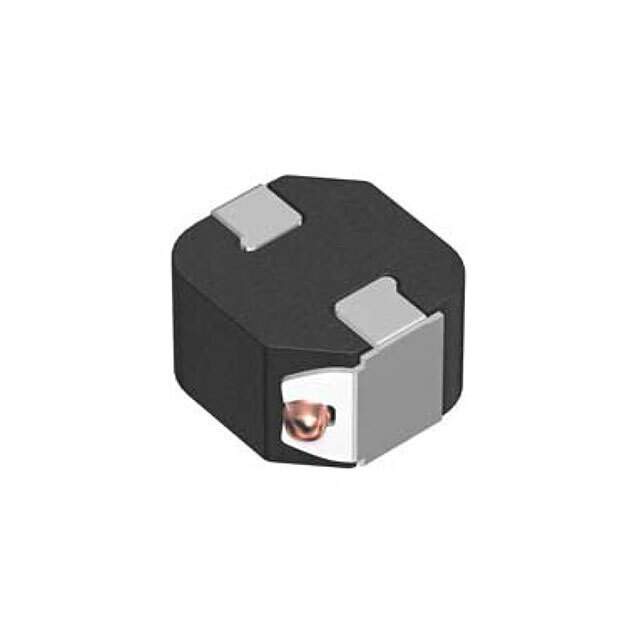

SPM4030T-1R5M Real Image
Same model may have multiple batches, images only for reference.

SPM4030T-1R5M

Part No SPM4030T-1R5M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.5UH 6.2A 25.08 MOHM / 1.5 µH Shielded Drum Core, Wirewound Inductor 6.2 A 25.08mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 6.2 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 25.08mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.165" L x 0.157" W (4.20mm x 4.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-175210-1,445-175210-2,445-175210-6
Standard Package 500
Win Source Part Number 969321-SPM4030T-1R5M
Ultra Librarian 3D Model Ultra Librarian SPM4030T-1R5M CAD Model

Description

The TDK Corporation SPM4030T-1R5M is a drum core wirewound inductor from TDK Corporation.

  • Manufacturer: TDK Corporation
  • Type: drum core wirewound inductor
  • Shielding: shielded
  • Mounting: surface mount technology (SMT)
  • Inductance: 1.5 µH
  • DCR: 25.08mOhm (Max)
  • Current: 6.2 A (Max)
  • Voltage Range: -40°C ~ 125°C
  • RoHS Compliant: yes
  • Package/Case: nonstandard
  • Dimensions: 0.165" L x 0.157" W (4.20mm x 4.00mm)
  • Height: 0.118" (3.00mm)
  • Application: inductors, coils, and chokes
