Same model may have multiple batches, images only for reference.

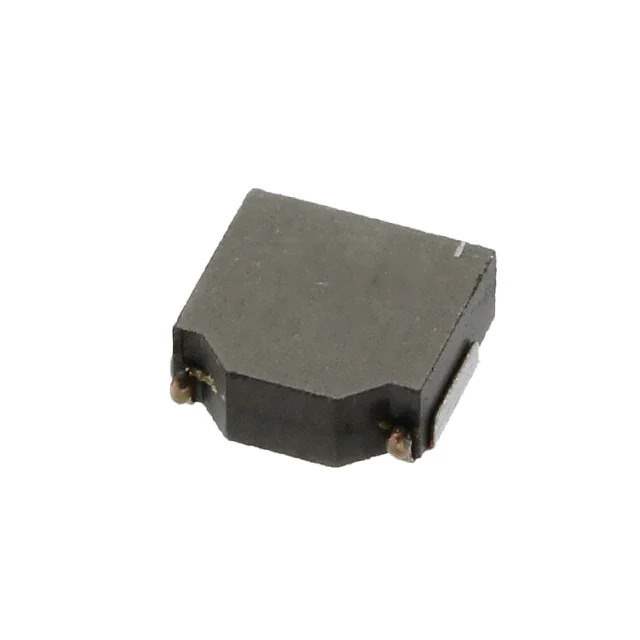

SPM5020T-2R2M Real Image
Same model may have multiple batches, images only for reference.

SPM5020T-2R2M

Part No SPM5020T-2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 4.2A 51.4MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series SPM
Package Tape & Reel
Product Status Last Time Buy
Type Drum Core, Wirewound
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 4.2 A
Current - Saturation (Isat) 5.5A
Shielding Shielded
DC Resistance (DCR) 51.4mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.213" L x 0.201" W (5.40mm x 5.10mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 845568-SPM5020T-2R2M
Ultra Librarian 3D Model Ultra Librarian SPM5020T-2R2M CAD Model

Description

The SPM5020T-2R2M is a drum core, wirewound inductor with a size of 0.213" L x 0.201" W (5.40mm x 5.10mm) and an inductance of 2.2 µH.

  • Inductance: 2.2 µH
  • Series: SPM series
  • Shielded: yes
  • Tolerance: ±20%
  • Maximum DC Resistance (DCR): 51.4mOhm
  • Current Rating: 4.2A
  • Operating Temperature: -40°C to 125°C
