Same model may have multiple batches, images only for reference.

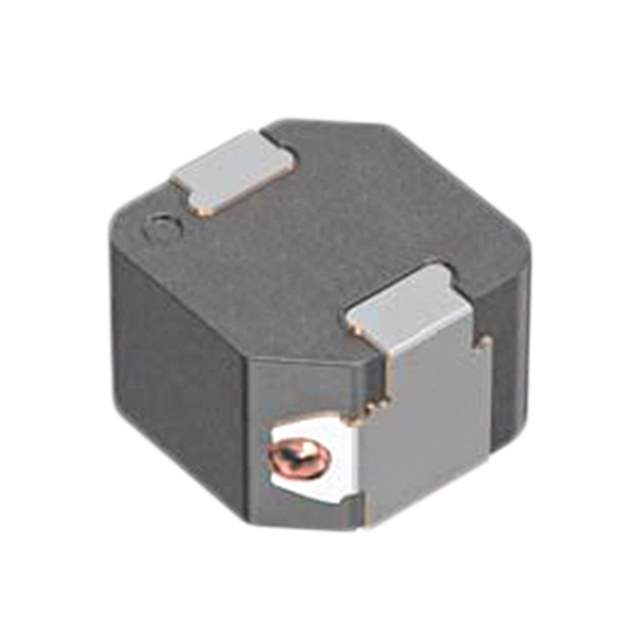

SPM6550T-1R0M100A Real Image
Same model may have multiple batches, images only for reference.

SPM6550T-1R0M100A

Part No SPM6550T-1R0M100A
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description HIGHLY EFFICIENT INTEGRATED 6A, SYNCHRONOUS BUCK REGULATOR | FIXED IND 1.09UH 14.1A 5.2 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Type Wirewound
Material - Core Metal
Inductance 1.09μH
Tolerance ±20%
Current Rating (Amps) 14.1A
Current - Saturation 15.3A
Shielding Shielded
DC Resistance (DCR) 5.2mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 2-SMD, J-Lead
Parts Dimension 0.280" L x 0.256" W (7.10mm x 6.50mm)
Height - Seated (Maximum) 0.203" (5.15mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1257938-SPM6550T-1R0M100A
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SPM6550T-1R0M100A CAD Model

Description

The SPM6550T-1R0M100A is a wirewound shielded inductor manufactured by TDK Corporation.

  • Inductance: 1.09μH
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 14.1A
  • DC Resistance (DCR): 5.2mOhm max
  • Package: 2-SMD, J-Lead
  • Height: 0.203" (5.15mm)
