Same model may have multiple batches, images only for reference.

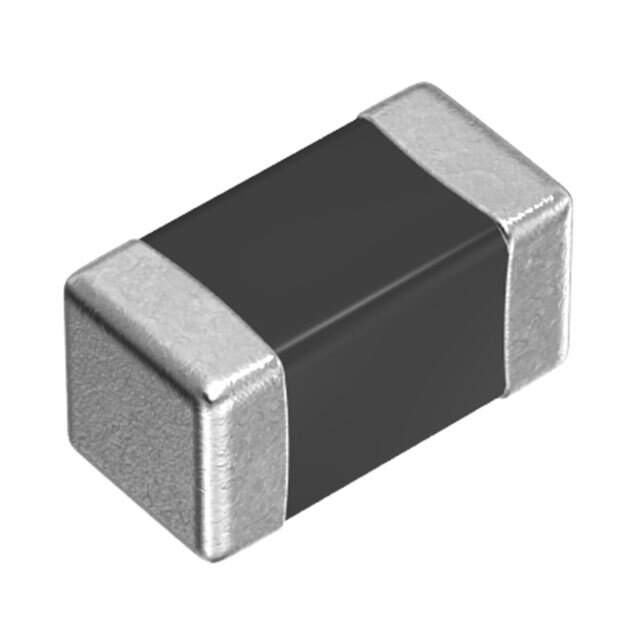

TFM201610ALC-R47MTAA Real Image
Same model may have multiple batches, images only for reference.

TFM201610ALC-R47MTAA

Part No TFM201610ALC-R47MTAA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470NH 5.2A 25 MOHM SMD
Datasheet
TFM201610ALC-R47MTAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 11 Weeks
Features 470 nH Shielded Thin Film Inductor 5.2 A 25mOhm Max 0806 (2016 Metric) -
Manufacturer TDK Corporation
Series TFM-ALC
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 0806 (2016 Metric)
Case / Package 0806 (2016 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-180258-6, 445-180258-1, 445-180258-2
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 899522-TFM201610ALC-R47MTAA
Ultra Librarian 3D Model Ultra Librarian TFM201610ALC-R47MTAA CAD Model

Description

The TDK Corporation TFM-ALC series is a 470 nH shielded thin film inductor that features a maximum current rating of 5.2 A and a maximum resistance of 25mOhm.

  • Series: TFM-ALC
  • Inductance: 470 nH
  • Type: Shielded thin film inductor
  • Maximum Current Rating: 5.2 A
  • Maximum Resistance: 25mOhm
  • Operating Temperature Range: -40°C to 125°C
  • Package: Reel
  • Mounting Type: Surface mount
  • Category: Inductors
  • Package Size: 0806 (2016 Metric)
  • Supply and Demand Status: Balanced
  • Package Quantity: 3000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 11 weeks
  • REACH: Unaffected
  • HTSUS: 8504.50.8000
  • Other Part Numbers: 445-180258-6, 445-180258-1, 445-180258-2
