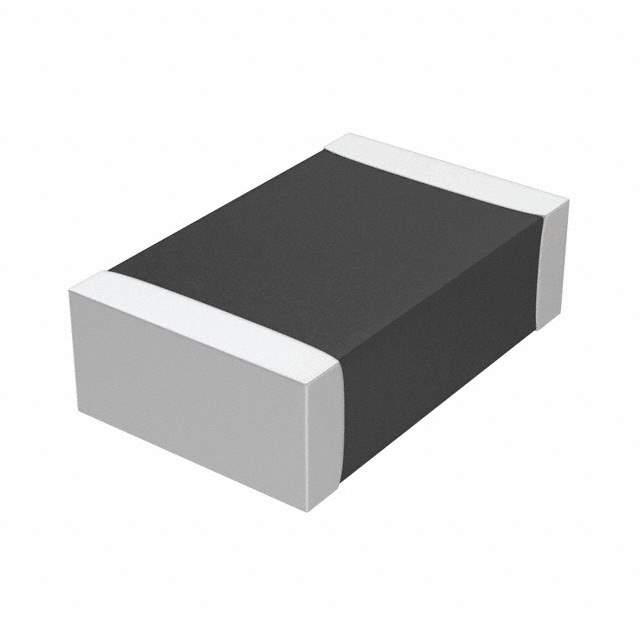

LQM21PN2R2MEHD Real Image
Same model may have multiple batches, images only for reference.

LQM21PN2R2MEHD

Part No LQM21PN2R2MEHD
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.1A 219MOHM SMD / 2.2 µH Shielded Multilayer Inductor 1.1 A 219mOhm Max 0805 (2012 Metric)
Datasheet
LQM21PN2R2MEHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Murata Electronics
Packaging Reel - TR
Type Multilayer
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 450mA
Shielding Shielded
DC Resistance (DCR) 219mOhm Max
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.041" (1.05mm)
Base Product Number LQM21PN
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 490-15987-2,490-15987-1,490-15987-6
Standard Package 3,000
Win Source Part Number 1327922-LQM21PN2R2MEHD
Ultra Librarian 3D Model Ultra Librarian LQM21PN2R2MEHD CAD Model

Description

The LQM21PN2R2MEHD is a fixed inductor manufactured by Murata Electronics.

  • Type: Multilayer Shielded
  • Size: 2.00mm x 1.25mm
  • Inductance: 2.2µH
  • Tolerance: ±20%
  • DC Resistance: 219mOhm max
  • Temperature Range: -40°C to 85°C
  • Current Rating: 1.1A
  • Package: Reel
  • Standard Package: 3,000 units
  • Mounting Type: Surface Mount
