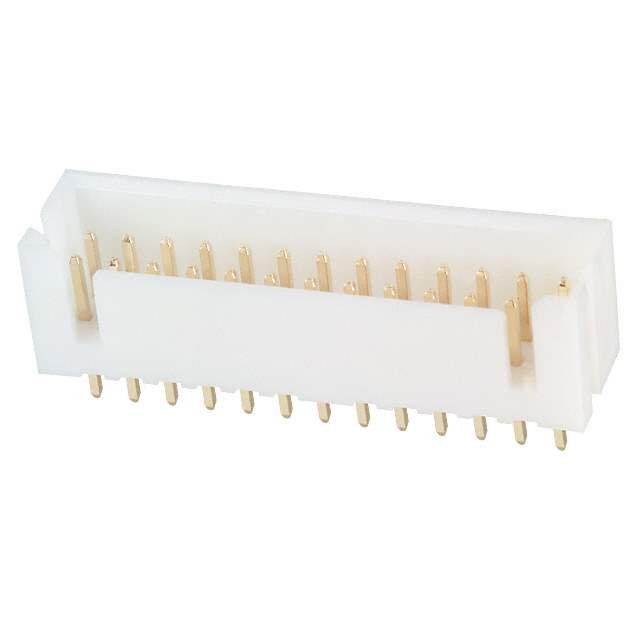

DF1B-26DP-2.5DSA(01) Real Image
Same model may have multiple batches, images only for reference.

DF1B-26DP-2.5DSA(01)

Part No DF1B-26DP-2.5DSA(01)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 26POS 2.5MM / Connector Header Through Hole 26 position 0.098" (2.50mm)
Datasheet
DF1B-26DP-2.5DSA(01) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF1B
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.417" (10.60mm)
Insulation Height 0.374" (9.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Voltage Rating 250V
Mated Stacking Heights 14mm
Base Product Number DF1B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *DF1B-26DP-2.5DSA(01,*DF1B-26DP-2.5DSA(01),-DF1B-26DP-2.5DSA(01),H3677,541-0624-2-01,*DF1B-26DP-2.5DSA(01)-ND
Standard Package 100
Win Source Part Number 1201139-DF1B-26DP-2.5DSA(01)
Ultra Librarian 3D Model Ultra Librarian DF1B-26DP-2.5DSA(01) CAD Model

Description

The 1201139-DF1B-26DP-2.5DSA(01) is a 26-position male pin header connector from Hirose Electric Co Ltd.

  • Positions: 26
  • Connector Type: Pin Header
  • Manufacturer: Hirose Electric Co Ltd
  • Gender: Male
  • Features: Keying Slot, Shrouded 4-Wall
  • Contact Shape: Square
  • Voltage Rating: 250V
  • Current Rating: - Amps
  • Contact Material: Brass
  • Contact Plating: Gold (Mating)
  • Connection Style: Board to Cable/Wire
  • Pitch Mating: 0.098 inches
  • Temperature Range: -35°C to 85°C
  • Insulation Material: Polyamide (PA), Nylon
  • Contact Length: 0.417 inches
  • Insulation Height: 0.374 inches
  • Mounting Type: Through-Hole
  • Fastening Type: Push-Pull
  • Packaging: Bulk
  • Standard Package: 100
