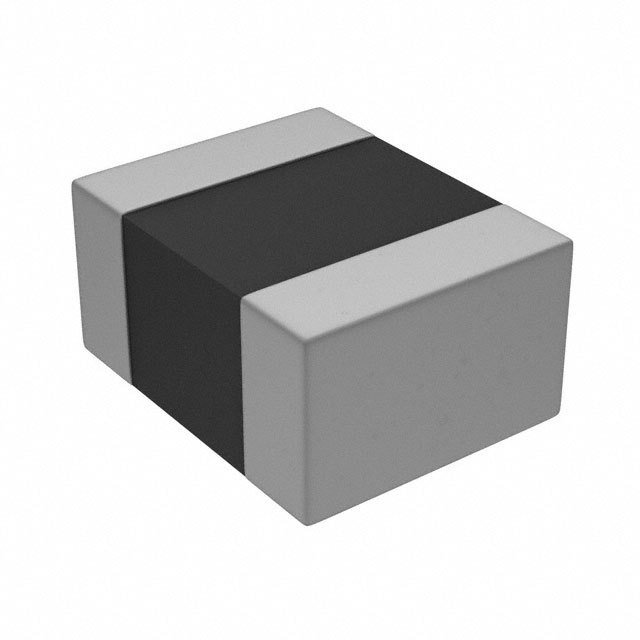

The TFM201610GHM-2R2M-T01 is a metal alloy power inductor produced by TDK Corporation. This component is designed for use in power management circuits within portable devices, particularly those requiring high efficiency and small size. The GHM series represents a specific construction and material choice designed to optimize performance in demanding applications.

Applications

• Smartphones: Power supply and voltage regulation in smartphones.
• Tablets: Power management circuits in tablet devices.
• Wearable Devices: Used in power circuits for smartwatches and fitness trackers.
• Portable Media Players: DC-DC conversion within portable media players.
• Power Amplifiers: Power supply decoupling for amplifiers.

Features

• Small Size: 2016 size (2.0 mm x 1.6 mm x 1.0 mm) form factor.
• Low DC Resistance: Minimizes conductive losses and maximizes power efficiency.
• Inductance: 2.2µH inductance value (2R2M).
• Metal Alloy Core: Excellent saturation characteristics under high current conditions.
• High Efficiency: Optimised for high power conversion efficiency.

Benefits

• Space-Saving Design: Enables compact and lightweight designs in portable devices.
• Enhanced Efficiency: Low DC resistance reduces power dissipation.
• Stable Performance: Metal alloy core ensures consistent inductance behavior across temperature and current ranges.
• Reliable Operation: Excellent saturation characteristics prevent inductance drop under high current loads.
• Extended Battery Life: Lower power losses extend battery life in portable equipment.

Additional Details

The TFM201610GHM-2R2M-T01 inductor is compliant with RoHS standards. The manufacturer's datasheet specifies critical electrical parameters, including saturation current, temperature ratings, and Q-factor. The “GHM” designation indicates specific materials and construction methods used to optimize performance. The ‘T01’ likely represents a specific packaging or termination style.
