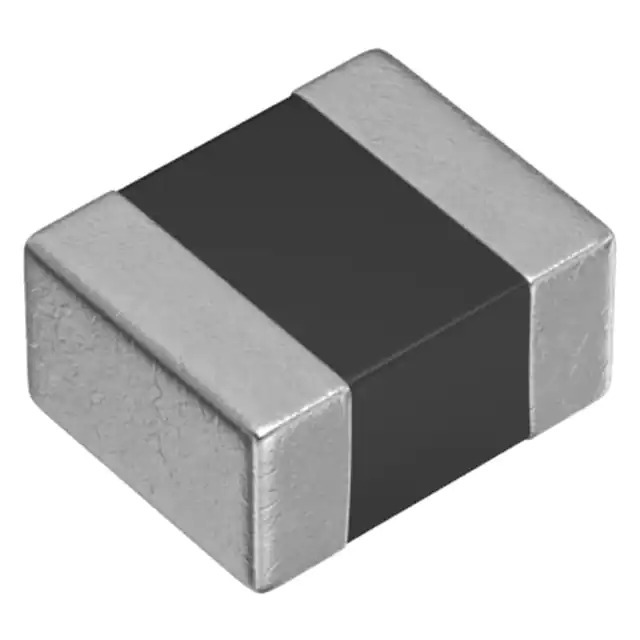

Same model may have multiple batches, images only for reference.
TFM252012ALMAR47MTAA TDK Corporation
Same model may have multiple batches, images only for reference.

TFM252012ALMAR47MTAA

Part No TFM252012ALMAR47MTAA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470NH 4.9A 24 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series TFM-ALMA
Package Tape & Reel
Product Status Active
Type Thin Film
Material - Core Metal
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 4.9 A
Current - Saturation (Isat) 5.8A
Shielding Shielded
DC Resistance (DCR) 24mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370346-TFM252012ALMAR47MTAA
Ultra Librarian 3D Model Ultra Librarian TFM252012ALMAR47MTAA CAD Model

Description

The TFM252012ALMAR47MTAA is a thin film fixed inductor from TDK Corporation. It belongs to the TFM-ALMA series and comes in a 1008 (2520 Metric) package.

  • Product Name: TFM252012ALMAR47MTAA
  • Manufacturer: TDK Corporation
  • Series: TFM-ALMA
  • Package: 1008 (2520 Metric)
  • Inductance: 470 nH
  • Current Rating: 4.9 A
  • Mounting Type: Surface Mount
  • Shielded: Yes
  • Temperature Range: -55°C to 150°C
  • DC Resistance: 24mOhm
  • Tolerance: ±20%
  • AEC-Q200 Compliant: Yes
  • REACH Compliant: Yes
  • Status: Active
  • Packaging: Tape and Reel
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.047" (1.20mm)
