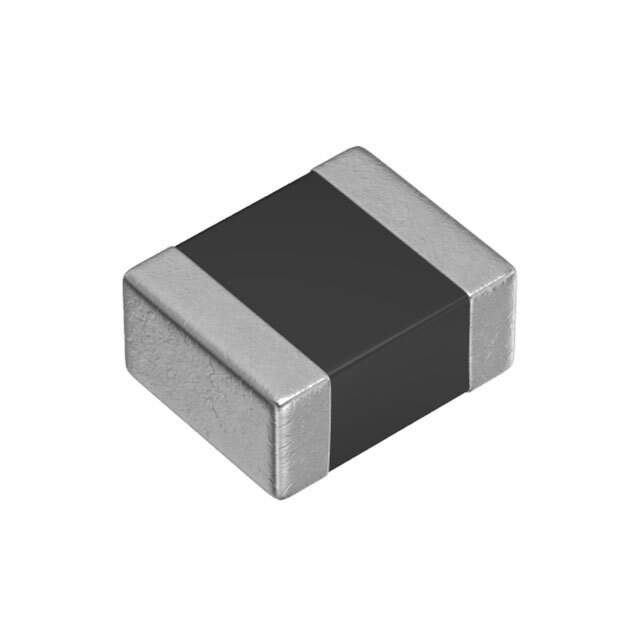

TMS252012ALM-1R0MTAA Real Image
Same model may have multiple batches, images only for reference.

TMS252012ALM-1R0MTAA

Part No TMS252012ALM-1R0MTAA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 3.7A 42 MOHM SMD / 1 µH Shielded Thin Film Inductor 3.7 A 42mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series TMS-ALM
Package Tape & Reel
Type Thin Film
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.7 A
Current - Saturation (Isat) 4.2A
Shielding Shielded
DC Resistance (DCR) 42mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-TMS252012ALM-1R0MTAACT,445-TMS252012ALM-1R0MTAADKR,445-TMS252012ALM-1R0MTAATR
Standard Package 3,000
Win Source Part Number 986210-TMS252012ALM-1R0MTAA
Ultra Librarian 3D Model Ultra Librarian TMS252012ALM-1R0MTAA CAD Model

Description

The TMS252012ALM-1R0MTAA is a fixed inductor from TDK Corporation that belongs to the Inductors, Coils, Chokes category.

  • Category: Inductors, Coils, Chokes
  • Package: 1008 (2520 Metric)
  • Inductance: 1μH
  • Tolerance: ±20%
  • AEC-Q200 Qualified: Yes
  • DCR (Max): 42mOhm
  • Current Rating: 3.7A
