Same model may have multiple batches, images only for reference.

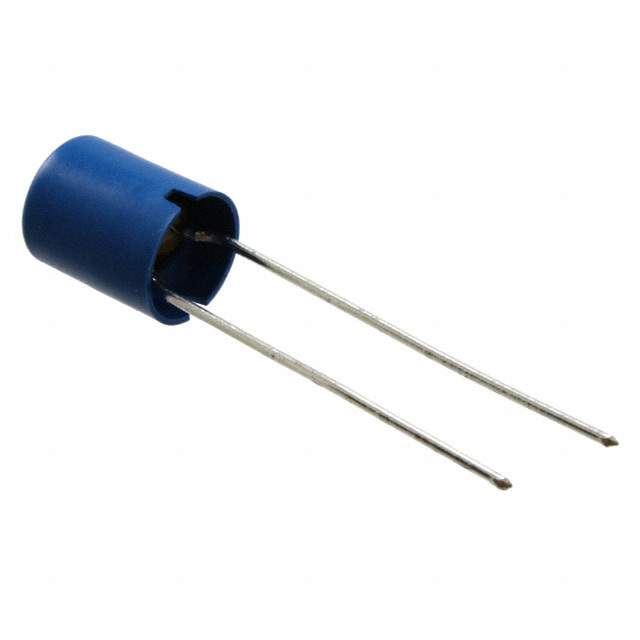

TSL0709RA-681KR25-PF Real Image
Same model may have multiple batches, images only for reference.

TSL0709RA-681KR25-PF

Part No TSL0709RA-681KR25-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 680UH 250MA 2.3 OHM TH / 680 µH Unshielded Inductor 250 mA 2.3Ohm Max Radial, Vertical Cylinder
Datasheet
TSL0709RA-681KR25-PF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series TSL
Package Cut Tape (CT) Tape & Box (TB)
Product Status Obsolete
Inductance 680 µH
Tolerance ±10%
Current Rating (Amps) 250 mA
Current - Saturation (Isat) 250mA
Shielding Unshielded
DC Resistance (DCR) 2.3Ohm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 1.7MHz
Temperature Range - Operating -20°C ~ 85°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.303" Dia (7.70mm)
Height - Seated (Max) 0.378" (9.60mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1339137-TSL0709RA-681KR25-PF
Ultra Librarian 3D Model Ultra Librarian TSL0709RA-681KR25-PF CAD Model

Description

The TSL0709RA-681KR25-PF is a fixed inductor that is part of the TSL series of inductors, coils, chokes.

  • Series: TSL
  • Packaging: Cut Tape (CT), Tape & Box (TB)
  • Shielding: Unshielded
  • Size / Dimension: 0.303" Diameter
  • Height: 0.378"
  • Inductance: 680 µH
  • Tolerance: +/-10%
  • Mounting Type: Through Hole
  • Package / Case: Radial, Vertical Cylinder
