Same model may have multiple batches, images only for reference.

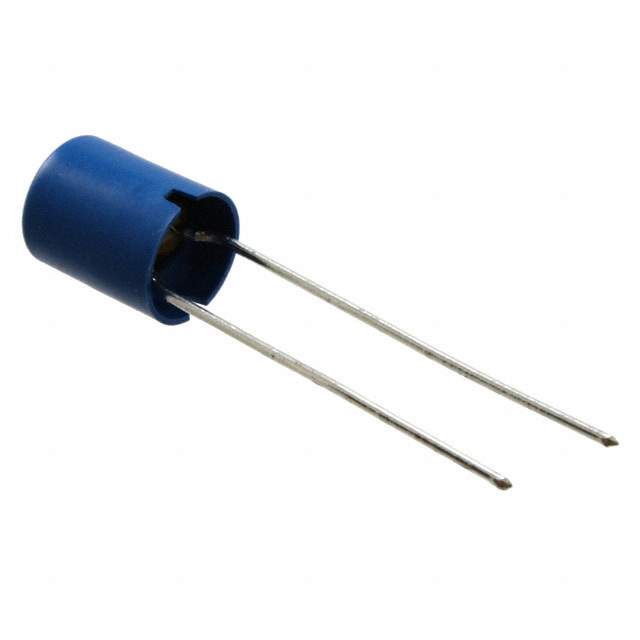

TSL0709RA-6R8M2R3-PF Real Image
Same model may have multiple batches, images only for reference.

TSL0709RA-6R8M2R3-PF

Part No TSL0709RA-6R8M2R3-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 6.8UH 2.3A 28 MOHM TH
Datasheet
TSL0709RA-6R8M2R3-PF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features 6.8 µH Unshielded - Inductor 2.3 A 28mOhm Max Radial, Vertical Cylinder
Manufacturer TDK Corporation
Series TSL
Package Cut Tape (CT), Tape & Box (TB)
Part Status Obsolete
Operating Temperature Range -20°C ~ 85°C
Mounting Through Hole
Package Radial, Vertical Cylinder
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 445-6511-3, 445-6511-1, TSL0709RA6R8M2R3PF, -TSL0709RA-6R8M2R3
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901299-TSL0709RA-6R8M2R3-PF
Ultra Librarian 3D Model Ultra Librarian TSL0709RA-6R8M2R3-PF CAD Model

Description

The TDK Corporation TSL0709RA-6R8M2R3-PF is an obsolete 6.8 µH unshielded inductor with a maximum resistance of 28mOhm.

  • Inductance: 6.8 µH
  • Shielding: Unshielded
  • Resistance: Maximum 28mOhm
  • Mounting Type: Through-hole mounted
  • Operating Temperature Range: -20°C to 85°C
  • Package: Radial, vertical cylinder
  • Packaging Options: Cut tape and tape & box packages
  • Series: TSL series
  • Applications: Power supplies, DC-DC converters, and voltage regulators
  • Package Quantity: 1000 pieces
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.50.4000
