Same model may have multiple batches, images only for reference.

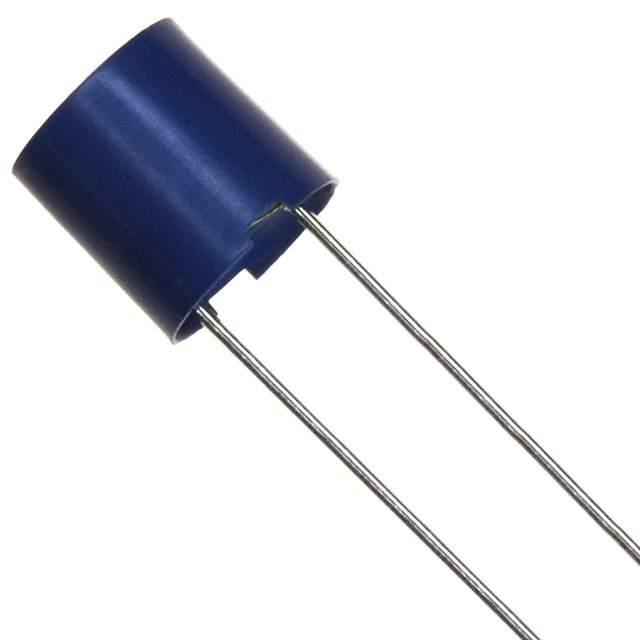

TSL0808RA-152KR21-PF Real Image
Same model may have multiple batches, images only for reference.

TSL0808RA-152KR21-PF

Part No TSL0808RA-152KR21-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.5MH 210MA 3.5 OHM TH
Datasheet
TSL0808RA-152KR21-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 1.5mH
Tolerance ±10%
Current Rating 210mA
Current - Saturation 210mA
DC Resistance (DCR) 3.5 Ohm Max
Q @ Freq 30 @ 252kHz
Frequency - Self Resonant 1.1MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.346" (8.80mm)
Win Source Part Number 1114653-TSL0808RA-152KR21-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL0808RA-152KR21-PF CAD Model

Description

The TDK Corporation 1114653-TSL0808RA-152KR21-PF is an inductor, coil, choke component that comes in an ammo package and is mounted through hole.

  • Manufacturer: TDK Corporation
  • Product: 1114653-TSL0808RA-152KR21-PF
  • Component Type: Inductor, Coil, Choke
  • Package Type: Ammo
  • Mounting Type: Through Hole
  • Current Rating: 210mA
  • Inductance: 1.5mH
  • Height - Seated (Max): 0.346" (8.80mm)
  • Tolerance: ±10%
  • Current - Saturation: 210mA
  • Q @ Freq: 30 @ 252kHz
  • Frequency - Self Resonant: 1.1MHz
  • Frequency - Test: 1kHz
  • Temperature Range: -20°C to 85°C
  • DC Resistance (DCR): 3.5 Ohm Max
  • Supply and Demand Status: Balanced
