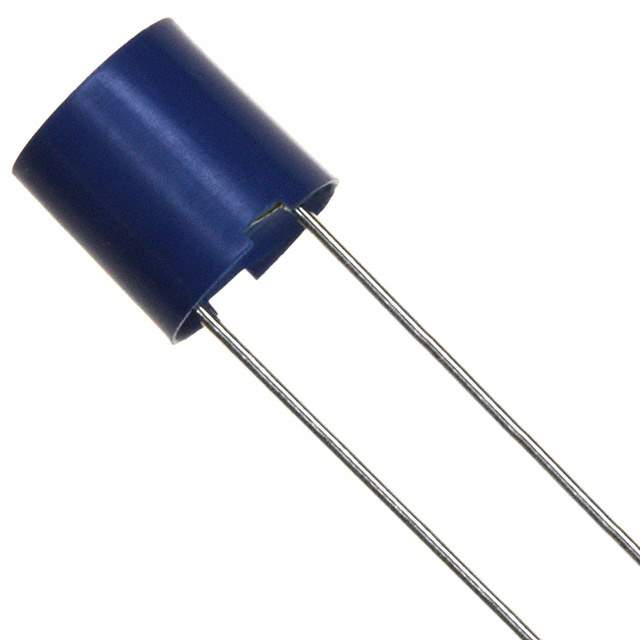

TSL0808RA-6R8M3R1-PF Real Image
Same model may have multiple batches, images only for reference.

TSL0808RA-6R8M3R1-PF

Part No TSL0808RA-6R8M3R1-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 6.8UH 3.1A 25 MOHM TH
Datasheet
TSL0808RA-6R8M3R1-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 6.8μH
Tolerance ±20%
Current Rating 3.1A
Current - Saturation 3.2A
DC Resistance (DCR) 25 mOhm Max
Q @ Freq 10 @ 7.96MHz
Frequency - Self Resonant 22MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.346" (8.80mm)
Win Source Part Number 1114659-TSL0808RA-6R8M3R1-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL0808RA-6R8M3R1-PF CAD Model

Description

The TSL0808RA-6R8M3R1-PF is an obsolete inductor from TDK Corporation.

  • Popularity: medium
  • Supply and Demand Status: balanced
  • Current Rating: 3.1 A
  • Inductance: 6.8 μH
  • Package: ammo
  • Height: 0.346" (8.80mm)
  • Tolerance: ±20%
  • Q @ Freq: 10 @ 7.96MHz
  • Frequency - Self-Resonant: 22MHz
  • Frequency - Test: 1kHz
  • DC Resistance (DCR): 25 mOhm Max
  • Temperature Range: -20°C to 85°C
  • Suitable for: power supplies, DC-DC converters, and other applications that require a high current rating and a small form factor
