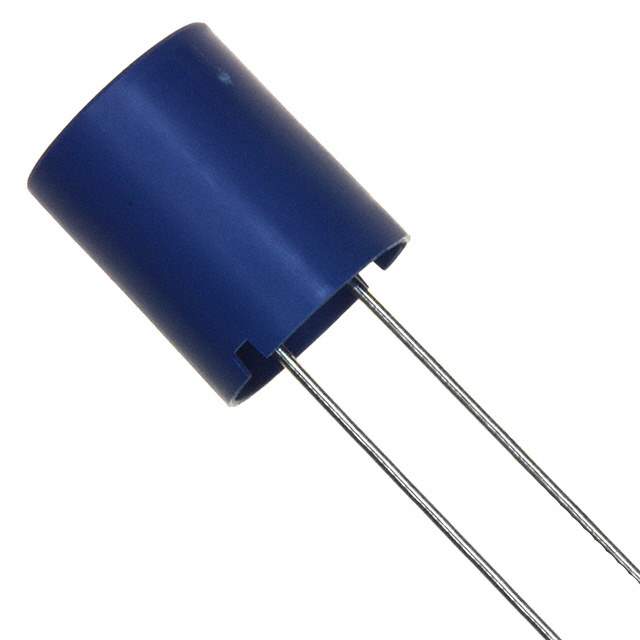

TSL1315RA-102JR78-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-102JR78-PF

Part No TSL1315RA-102JR78-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Wirewound 1mH 5% 1KHz 30Q-Factor 780mA 1Ohm DCR RDL Ammo / FIXED IND 1MH 780MA 1 OHM TH
Datasheet
TSL1315RA-102JR78-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 1mH
Tolerance ±5%
Current Rating 780mA
Current - Saturation 1.2A
DC Resistance (DCR) 1 Ohm Max
Q @ Freq 30 @ 252kHz
Frequency - Self Resonant 1MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122644-TSL1315RA-102JR78-PF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TSL1315
Introduction Date June 25, 1999
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-102JR78-PF CAD Model

Description

It has an AMMO package and a height of 0.669 inches when seated. The inductance is 1mH and the current rating is 780mA.

  • Package: AMMO
  • Height: 0.669 inches
  • Inductance: 1mH
  • Current Rating: 780mA
  • Tolerance: ±5%
  • DC Resistance (DCR): 1 Ohm max
  • Frequency Self-Resonant: 1MHz
  • Q @ Freq: 30 @ 252kHz
  • Temperature Range: -20°C to 85°C
