Same model may have multiple batches, images only for reference.

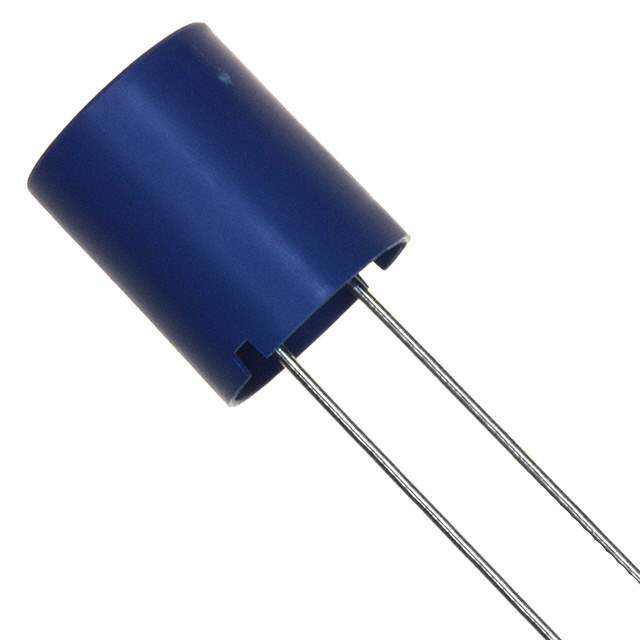

TSL1315RA-150K4R5-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-150K4R5-PF

Part No TSL1315RA-150K4R5-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 15UH 4.5A 28 MOHM TH
Datasheet
TSL1315RA-150K4R5-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 15μH
Tolerance ±10%
Current Rating 4.5A
Current - Saturation 9.5A
DC Resistance (DCR) 28 mOhm Max
Q @ Freq 90 @ 2.52MHz
Frequency - Self Resonant 12MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122597-TSL1315RA-150K4R5-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-150K4R5-PF CAD Model

Description

The TDK Corporation TSL1315RA-150K4R5-PF is an inductor designed for use in power supply applications. With an inductance of 15µH and a current rating of 4.5A, this inductor is capable of handling high power loads with ease.

  • Inductance: 15µH
  • Current Rating: 4.5A
  • Mounting Style: through-hole
  • Tolerance: ±10%
  • Package: ammo package
