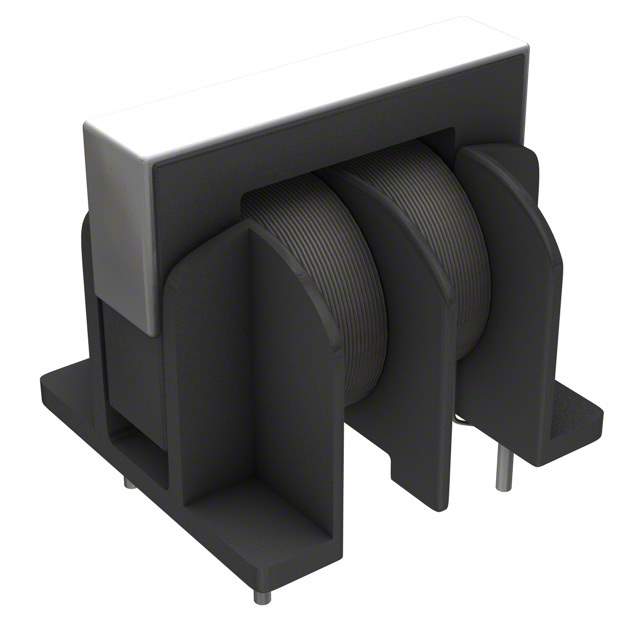

UF1815SG-650Y4R0-01 Real Image
Same model may have multiple batches, images only for reference.

UF1815SG-650Y4R0-01

Part No UF1815SG-650Y4R0-01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4A 2LN TH
Datasheet
UF1815SG-650Y4R0-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Bulk
Status Obsolete(EOL)
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 30 mOhm
Temperature Range - Operating -20°C to 120°C
Mounting Through Hole
Height (Max) 0.610" (15.50mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 054487-UF1815SG-650Y4R0-01
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UF1815SG-650Y4R0-01 CAD Model

Description

The supply and demand status is limited. This product is manufactured by TDK Corporation and has a win source part number of 054487-UF1815SG-650Y4R0-01.

  • Filter Type: power line
  • Status: obsolete(EOL)
  • Packaging: bulk
  • Voltage Rating - DC: not available
  • Current Rating (max): 4A
  • Mounting: through hole
  • Height (max): 0.610" (15.50mm)
  • Number of Lines: 2
  • DC Resistance (DCR) (max): 30 mOhm
  • Categories: filters
  • Temperature Range - Operating: -20°C to 120°C
  • Dimension: vertical, 4 PC Pin
