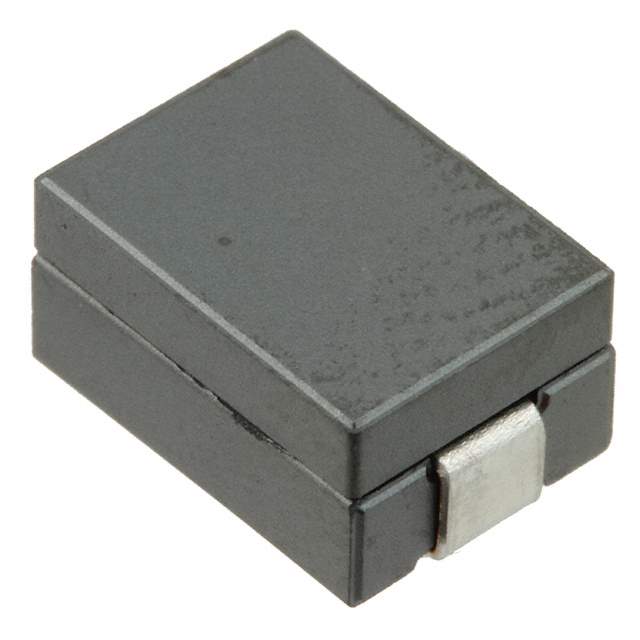

VLB10050HT-R20M Real Image
Same model may have multiple batches, images only for reference.

VLB10050HT-R20M

Part No VLB10050HT-R20M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 200NH 31A 0.35 MOHM
Datasheet
VLB10050HT-R20M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 200nH
Tolerance ±20%
Current Rating 31A
Current - Saturation 37A
DC Resistance (DCR) 0.35 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 1117086-VLB10050HT-R20M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLB10050HT-R20M CAD Model

Description

The TDK Corporation VLB10050HT-R20M is a wirewound inductor with a current rating of 31A and an inductance of 200nH.

  • Current Rating: 31A
  • Inductance: 200nH
  • DC Resistance: 0.35 mOhm max
  • Operating Temperature: -40°C to 125°C
  • Package: Reel
  • Supply and Demand: Balance
  • Applications: Inductor, coil, and choke
