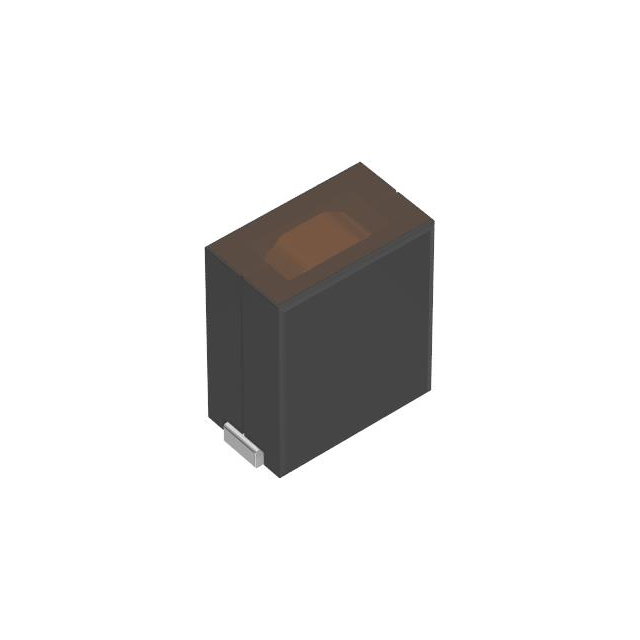

VLBU10060120T-R09L-1 Real Image
Same model may have multiple batches, images only for reference.

VLBU10060120T-R09L-1

Part No VLBU10060120T-R09L-1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 90NH 83A 0.12 MOHM SMD / 90 nH Unshielded Drum Core, Wirewound Inductor 83 A 0.12mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series VLBU
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 90 nH
Tolerance ±15%
Current Rating (Amps) 83 A
Current - Saturation (Isat) 140A
Shielding Unshielded
DC Resistance (DCR) 0.12mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.394" L x 0.236" W (10.00mm x 6.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1350738-VLBU10060120T-R09L-1
Ultra Librarian 3D Model Ultra Librarian VLBU10060120T-R09L-1 CAD Model

Description

The VLBU10060120T-R09L-1 is a drum core, wirewound inductor from TDK Corporation.

  • Packaging: Tape and Reel
  • Shielding: Unshielded
  • Size / Dimension: 0.394 inches in Length and 0.236 inches in Width
  • Inductance: 90 nH
  • Tolerance: ±15%
  • DC Resistance (DCR): 0.12mOhm
  • Current Rating: 83 A
  • Operating Temperature: -40°C to 125°C
