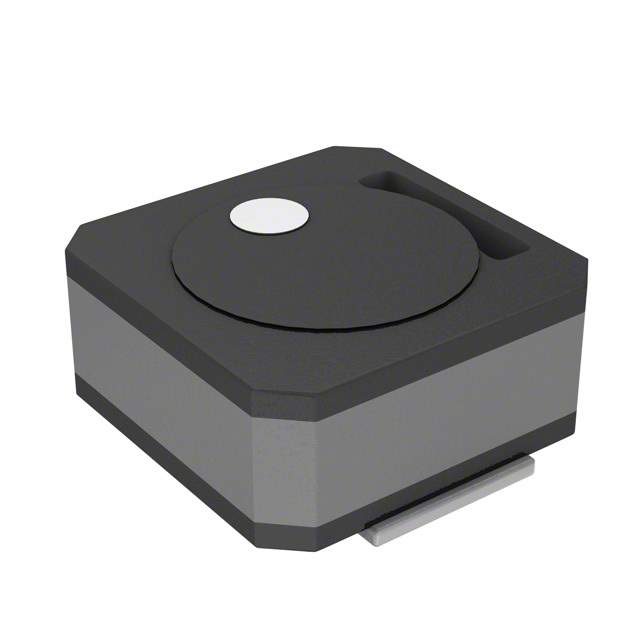

VLCF4020T-220MR56 Real Image1 VLCF4020T-220MR56 Real Image2
Same model may have multiple batches, images only for reference.
VLCF4020T-220MR56 Real Image1 VLCF4020T-220MR56 Real Image2
VLCF4020T-220MR56 Real Image1 VLCF4020T-220MR56 Real Image2
Same model may have multiple batches, images only for reference.

VLCF4020T-220MR56

Part No VLCF4020T-220MR56
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 560MA 431 MOHM / Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 0.83A 0.431Ohm DCR 1515 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 560mA
Current - Saturation 560mA
DC Resistance (DCR) 431 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 126514-VLCF4020T-220MR56
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VLCF
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VLCF4020T-220MR56 CAD Model

Description

The TDK Corporation VLCF4020T-220MR56 is a wirewound ferrite core inductor with a current rating of 560mA and an inductance of 22μH.

  • Height: 0.079" (2.00mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • DC Resistance (DCR): 431 mOhm Max
  • Temperature Range: -40°C to 105°C
  • Family: VLCF family
  • Category: Inductors, Coils, Chokes
  • Estimated EOL date: 2027
  • Compliance: Halogen-free regulations
  • Popularity: Widely used
