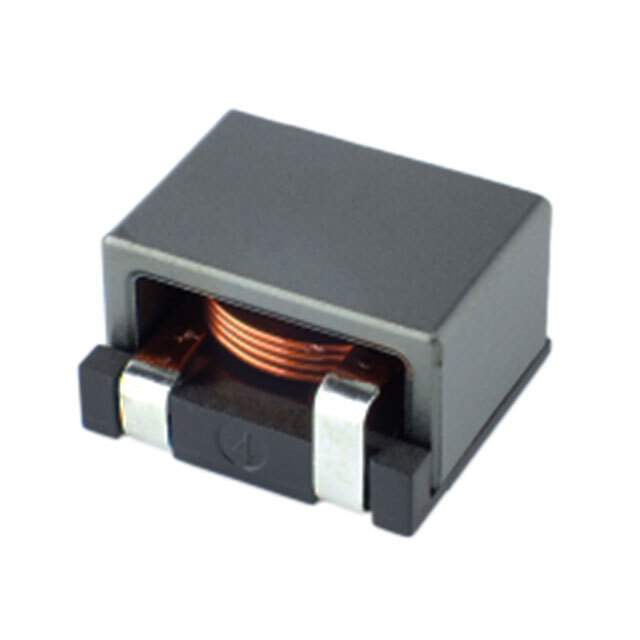

VLM13580T-R82M-D1

Part No VLM13580T-R82M-D1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 820NH 12.6A 2 MOHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 820nH
Tolerance ±20%
Current Rating 12.6A
Current - Saturation 36A
DC Resistance (DCR) 2 mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.327" (8.30mm)
Win Source Part Number 1052704-VLM13580T-R82M-D1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLM13580T-R82M-D1 CAD Model

Description

The TDK Corporation's wirewound inductor is a highly reliable and efficient electronic component, designed for use in various electronic devices.

  • Current Rating: 12.6A
  • Inductance: 820nH
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • AEC-Q200 Qualified: Yes
  • DC Resistance (DCR): 2 mOhm Max
  • Temperature Range: -40°C to 125°C
  • Supply and Demand Status: balanced
