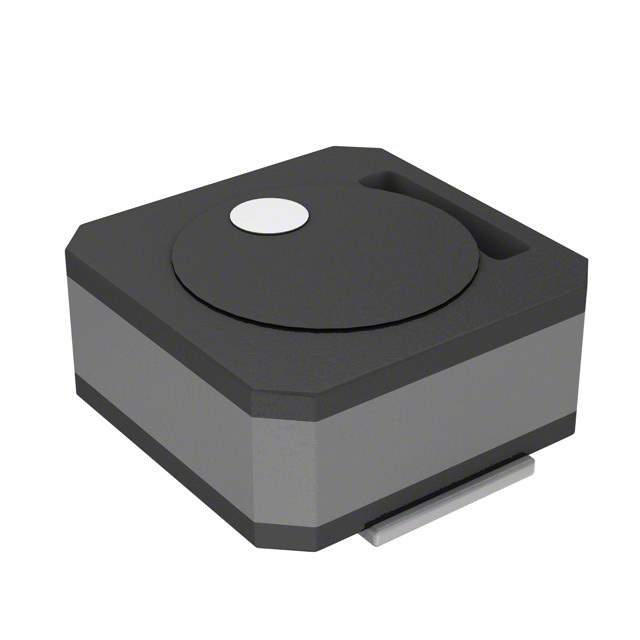

VLCF4020T-470MR39 Real Image
Same model may have multiple batches, images only for reference.

VLCF4020T-470MR39

Part No VLCF4020T-470MR39
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 47UH 390MA 934 MOHM
Datasheet
VLCF4020T-470MR39 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 390mA
Current - Saturation 390mA
DC Resistance (DCR) 934 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 1117100-VLCF4020T-470MR39
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLCF4020T-470MR39 CAD Model

Description

The TDK Corporation VLCF4020T-470MR39 is a wirewound inductor with an inductance of 47μH and a current rating of 390mA.

  • Inductance: 47μH
  • Current Rating: 390mA
  • Height (Seated): 0.079" (2.00mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 934 mOhm Max
  • Current Saturation: 390mA
  • Operating Temperature: -40°C to 105°C
  • Category: Inductors, Coils, and Chokes
  • Packaging: Reel - TR
  • Popularity: Medium
  • Supply and Demand: Limited
