Same model may have multiple batches, images only for reference.

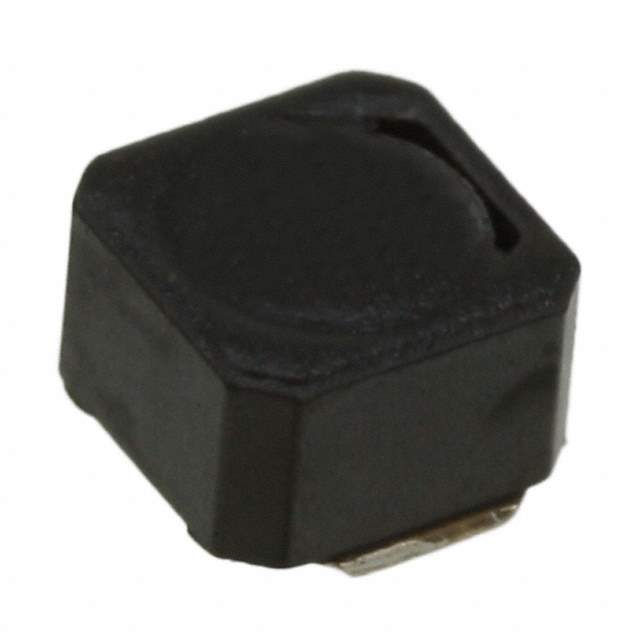

VLCF4028T-471MR14-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF4028T-471MR14-2

Part No VLCF4028T-471MR14-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470UH 140MA 4.58 OHM
Datasheet
VLCF4028T-471MR14-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLCF
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 470μH
Tolerance ±20%
Current Rating 140mA
Current - Saturation 140mA
Shielding Shielded
DC Resistance (DCR) 4.58 Ohm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Maximum) 0.110" (2.80mm)
Win Source Part Number 799099-VLCF4028T-471MR14-2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLCF4028T-471MR14-2 CAD Model

Description

The TDK Corporation VLCF4028T-471MR14-2 is a shielded wirewound inductor manufactured by TDK Corporation.

  • Inductance: 470μH
  • Current Rating: 140mA
  • Operating Temperature: -40°C to 105°C
  • Package Type: Nonstandard
  • Mounting: SMD
  • Dimensions: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Seated Height: 0.110" (2.80mm)
  • DC Resistance (DCR): 4.58 Ohm Max
  • Core Material: Ferrite
  • Tolerance: ±20%
  • Saturation Current: 140mA
  • Applications: Power supplies, DC-DC converters, EMI filters
