Same model may have multiple batches, images only for reference.

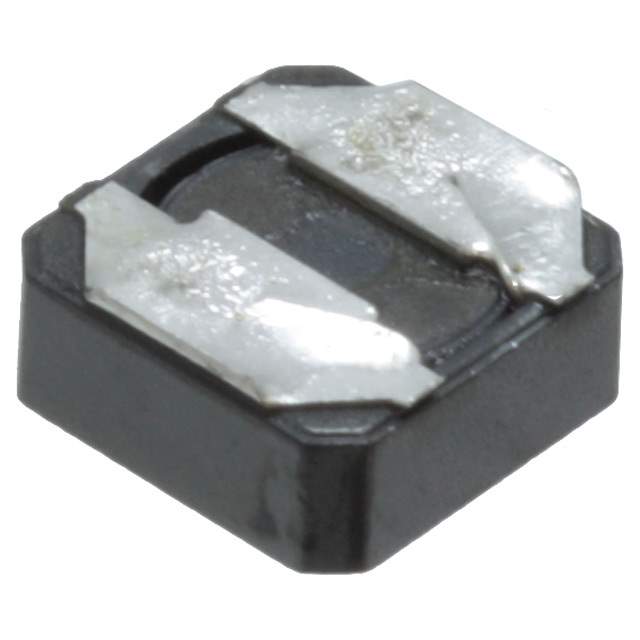

VLCF5024T-4R7N1R3-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF5024T-4R7N1R3-2

Part No VLCF5024T-4R7N1R3-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.33A 44 MOHM
Datasheet
VLCF5024T-4R7N1R3-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 1.33A
Current - Saturation 1.33A
DC Resistance (DCR) 44 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 1117119-VLCF5024T-4R7N1R3-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLCF5024T-4R7N1R3-2 CAD Model

Description

The VLCF5024T-4R7N1R3-2 is a wirewound inductor manufactured by TDK Corporation that belongs to the Inductors, Coils, Chokes category.

  • Inductance: 4.7μH
  • Current Rating: 1.33A
  • DC Resistance: 44 mOhm max
  • Core Material: Ferrite
  • Tolerance: ±30 percent
  • Profile: 2.40mm
  • Ideal for: Power supplies, DC-DC converters, and automotive electronics
