Same model may have multiple batches, images only for reference.

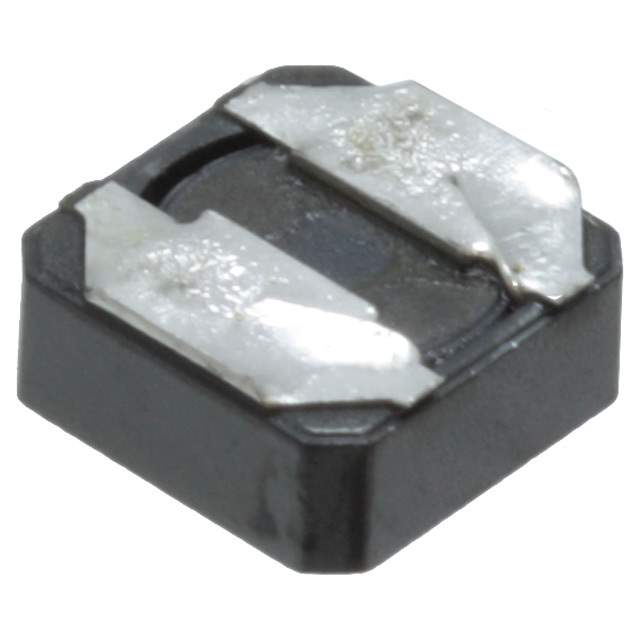

VLCF5024T-6R8N1R1-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF5024T-6R8N1R1-2

Part No VLCF5024T-6R8N1R1-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 6.8UH 1.11A 61MOHM SMD / 6.8 µH Shielded Drum Core, Wirewound Inductor 1.11 A 61mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±30%
Current Rating (Amps) 1.11 A
Current - Saturation (Isat) 1.11A
Shielding Shielded
DC Resistance (DCR) 61mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.094" (2.40mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 445-8749-6,445-8749-2,445-8749-1,VLCF5024T6R8N1R12
Standard Package 500
Win Source Part Number 1327804-VLCF5024T-6R8N1R1-2
Ultra Librarian 3D Model Ultra Librarian VLCF5024T-6R8N1R1-2 CAD Model

Description

The VLCF5024T-6R8N1R1-2 is a shielded, surface mount drum core wirewound inductor with an inductance of 6.8 microhenries.

  • Inductance: 6.8 microhenries
  • Height: 0.094 inches
  • Standard Package: 500
  • Tolerance: ±30%
  • DC Resistance: 61 milliohms max
  • Current Rating: 1.11 A
  • Saturation Current: 1.11 A
  • Temperature Range: -40°C to 105°C
  • Material: Ferrite
  • Package/Case: Nonstandard
  • REACH: Unaffected
  • ROHS3 Compliant: Yes
  • Type: Drum Core, Wirewound
  • Mounting: Surface Mount
  • Shielding: Shielded
