Same model may have multiple batches, images only for reference.

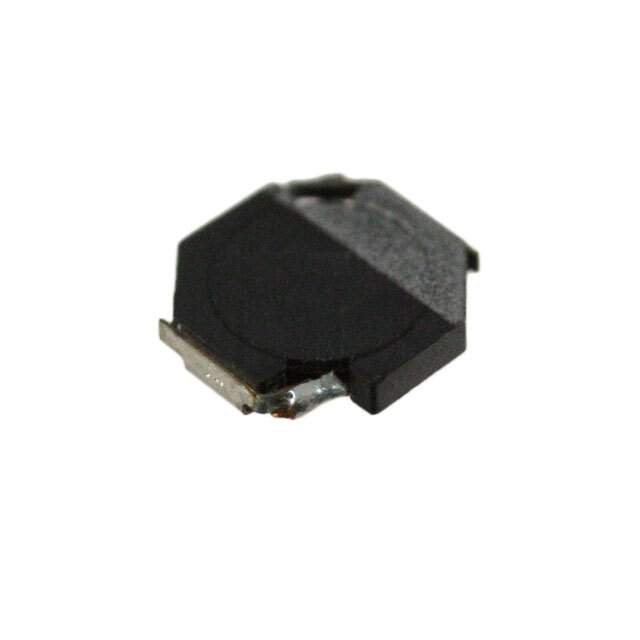

VLF4012ST-3R3M1R1 Real Image
Same model may have multiple batches, images only for reference.

VLF4012ST-3R3M1R1

Part No VLF4012ST-3R3M1R1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.1A 160MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 1.1 A 160mOhm Max Nonstandard
Datasheet
VLF4012ST-3R3M1R1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLF
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.5A
Shielding Shielded
DC Resistance (DCR) 160mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.150" L x 0.142" W (3.80mm x 3.60mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-4215-2,445-4215-1,445-4215-6,-VLF4012ST,VLF4012ST3R3M1R1
Standard Package 1,000
Win Source Part Number 1103920-VLF4012ST-3R3M1R1
Ultra Librarian 3D Model Ultra Librarian VLF4012ST-3R3M1R1 CAD Model

Description

The TDK Corporation VLF4012ST-3R3M1R1 is a high-quality fixed inductor that is widely used in various applications.

  • Status: Obsolete product that is no longer manufactured.
  • Device Type: Surface mount device
  • Inductance: 3.3 µH
  • DC Resistance: 160mOhm
