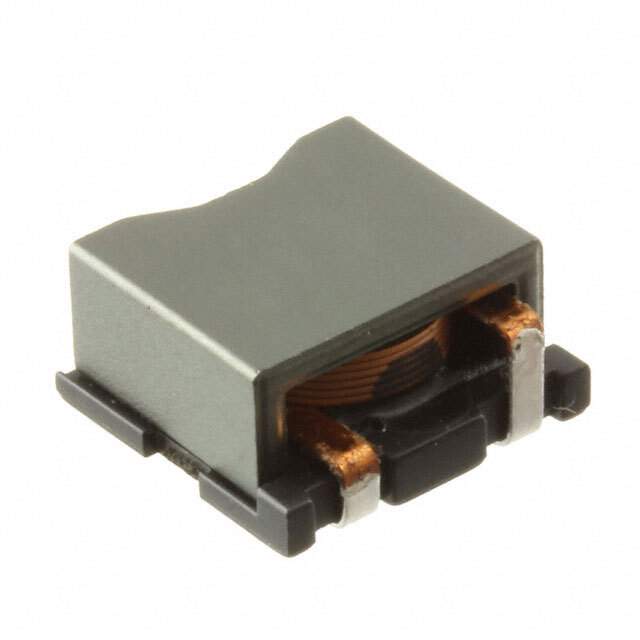

VLM10555T-R56M120-3 Real Image
Same model may have multiple batches, images only for reference.

VLM10555T-R56M120-3

Part No VLM10555T-R56M120-3
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 560NH 12A 2.5 MOHM SMD
Datasheet
VLM10555T-R56M120-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 13 Weeks
Features 560 nH Shielded Wirewound Inductor 12 A 2.5mOhm Max Nonstandard
Manufacturer TDK Corporation
Series VLM
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-9523-6, 445-9523-2, 445-9523-1, VLM10555TR56M1203
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902641-VLM10555T-R56M120-3
Ultra Librarian 3D Model Ultra Librarian VLM10555T-R56M120-3 CAD Model

Description

The TDK Corporation 902641-VLM10555T-R56M120-3 is a shielded wirewound inductor that is part of the VLM series.

  • Series: VLM
  • Maximum Current Rating: 12 A
  • Resistance: 2.5 mOhm (Nonstandard)
  • Popularity: High
  • Supply and Demand Status: Balanced
