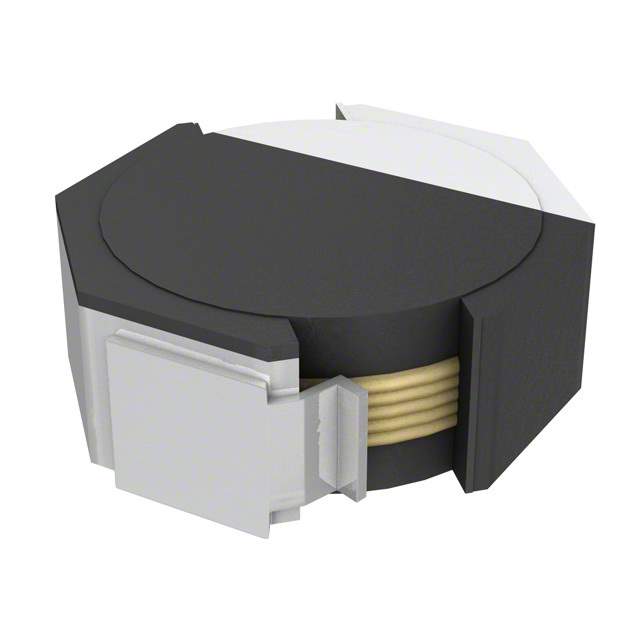

VLF4014ST-1R0N2R3 Real Image
Same model may have multiple batches, images only for reference.

VLF4014ST-1R0N2R3

Part No VLF4014ST-1R0N2R3
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 2.3A 49 MOHM SMD
Datasheet
VLF4014ST-1R0N2R3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating 2.3A
Current - Saturation 2.7A
Shielding Shielded
DC Resistance (DCR) 49 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 1MHz
Mounting SMD
Package Nonstandard
Size 0.150" L x 0.142" W (3.80mm x 3.60mm)
Height - Seated (Maximum) 0.055" (1.40mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 757937-VLF4014ST-1R0N2R3
Popularity Medium
Supply and Demand Status Limited
Family Name VLF
Introduction Date May 20, 2002
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VLF4014ST-1R0N2R3 CAD Model

Description

The TDK Corporation VLF4014ST-1R0N2R3 is a wirewound inductor that is part of the VLF series.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Category: Inductors, Coils, Chokes
  • Shielded: Yes
  • Mounting: SMD
  • Current Rating: 2.3A
  • Inductance: 1μH
  • Operating Temperature Range: -40°C to 105°C
