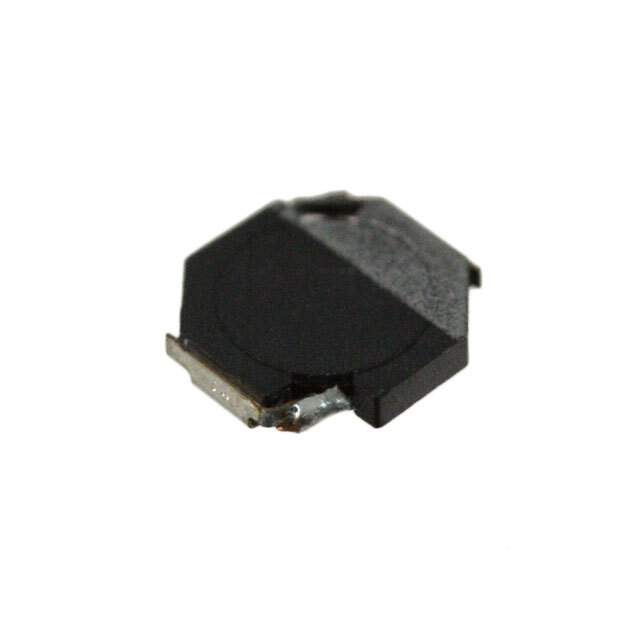

VLF5010ST-100MR94 Real Image1 VLF5010ST-100MR94 Real Image2
Same model may have multiple batches, images only for reference.
VLF5010ST-100MR94 Real Image1 VLF5010ST-100MR94 Real Image2
VLF5010ST-100MR94 Real Image1 VLF5010ST-100MR94 Real Image2
Same model may have multiple batches, images only for reference.

VLF5010ST-100MR94

Part No VLF5010ST-100MR94
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 940MA 370 MOHM
Datasheet
VLF5010ST-100MR94 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 940mA
Current - Saturation 1A
DC Resistance (DCR) 370 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 036325-VLF5010ST-100MR94
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLF5010ST-100MR94 CAD Model

Description

The VLF5010ST-100MR94 is a wirewound inductor from TDK Corporation.

  • Current Rating: 940mA
  • Inductance: 10μH
  • Tolerance: ±20%
  • DCR: 370 mOhm (Max)
  • Height: 0.039" (1.00mm)
  • Mounting Type: SMD (SMT)
  • Material-Core: Ferrite
  • Current-Saturation: 1A
  • Operating Temperature Range: -40°C to 105°C
