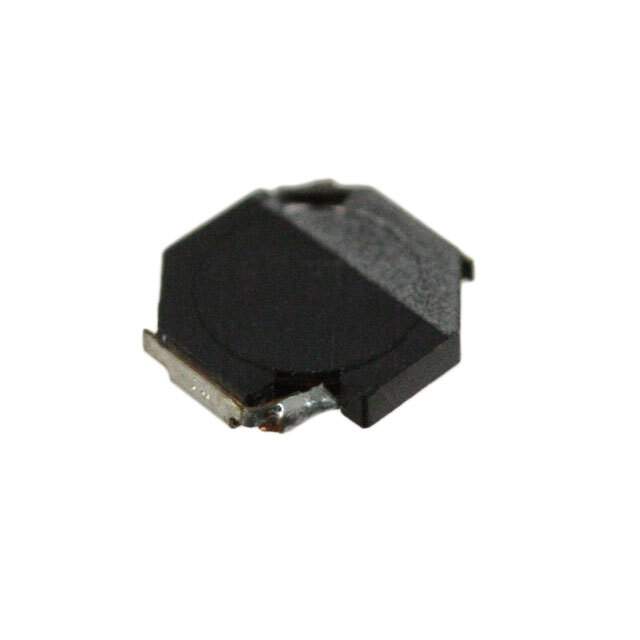

VLF5014ST-2R2M2R3

Part No VLF5014ST-2R2M2R3
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.3A 73 MOHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 2.3A
Current - Saturation 3A
DC Resistance (DCR) 73 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.055" (1.40mm)
Win Source Part Number 036332-VLF5014ST-2R2M2R3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLF5014ST-2R2M2R3 CAD Model

Description

The VLF5014ST-2R2M2R3 is a wirewound inductor manufactured by TDK Corporation.

  • Current Rating: 2.3A
  • Inductance: 2.2μH
  • Mounting: SMD (SMT)
  • Height: 0.055" (1.40mm)
