Same model may have multiple batches, images only for reference.

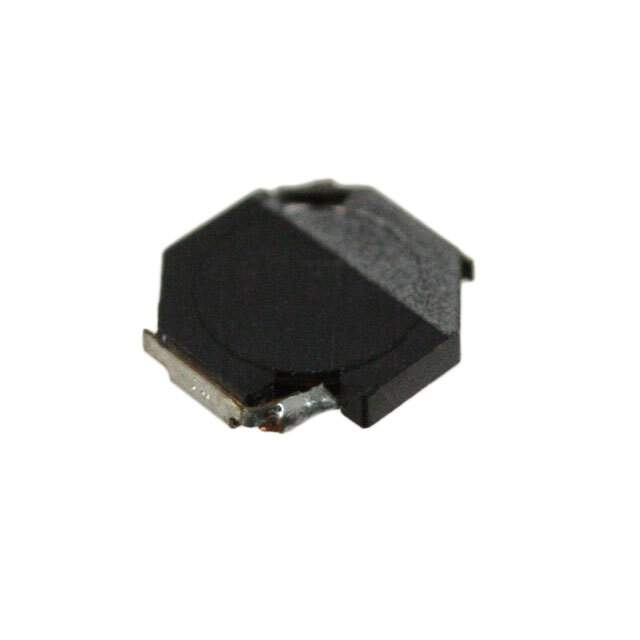

VLF5014ST-4R7M1R7 Real Image
Same model may have multiple batches, images only for reference.

VLF5014ST-4R7M1R7

Part No VLF5014ST-4R7M1R7
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.7A 120 MOHM
Datasheet
VLF5014ST-4R7M1R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.7A
Current - Saturation 2A
DC Resistance (DCR) 120 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.055" (1.40mm)
Win Source Part Number 036334-VLF5014ST-4R7M1R7
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLF5014ST-4R7M1R7 CAD Model

Description

The TDK Corporation VLF5014ST-4R7M1R7 is a wirewound inductor designed for use in inductors, coils, and chokes.

  • Height: 0.055" (1.40mm)
  • Current Rating: 1.7A
  • Inductance: 4.7μH
  • Tolerance: ±20%
