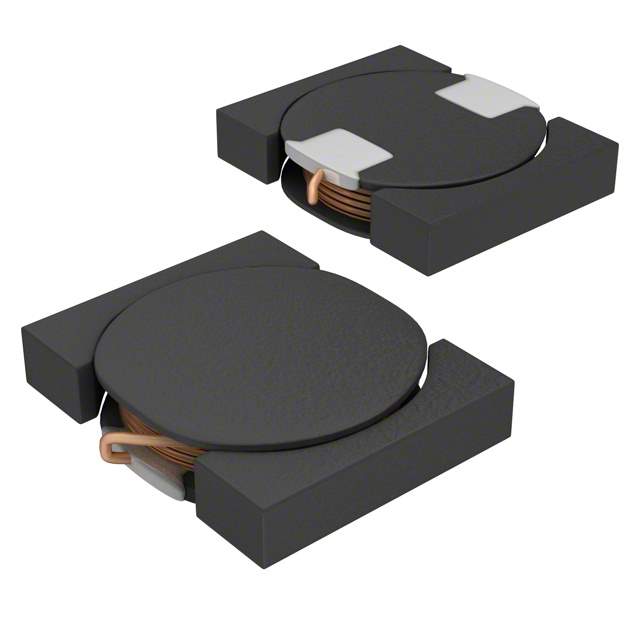

VLF504010MT-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLF504010MT-4R7M

Part No VLF504010MT-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.77A 120 MOHM / Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 1.77A
Current - Saturation 1.32A
Shielding Shielded
DC Resistance (DCR) 120mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806849-VLF504010MT-4R7M
Ultra Librarian 3D Model Ultra Librarian VLF504010MT-4R7M CAD Model

Description

{"ProductId":745430,"FormattedDescription":"

The TDK Corporation VLF504010MT-4R7M is a wirewound inductor with a shielding feature and a ferrite core material.

  • Inductance: 4.7µH
  • Tolerance: ±20%
  • DC Resistance: 120mOhm Max
  • Current Saturation: 1.32A
  • Temperature Range: -40°C to 105°C
  • Dimensions: 0.197" L x 0.157" W (5.00mm x 4.00mm)
  • Height: 0.039" (1.00mm)
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Status: Obsolete (end of life)
"}
