Same model may have multiple batches, images only for reference.

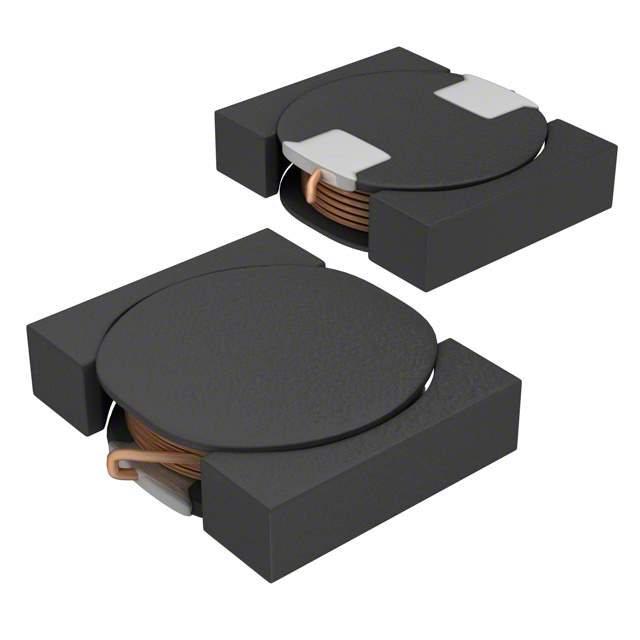

VLF504012MT-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLF504012MT-4R7M

Part No VLF504012MT-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.83A 120MOHM SM
Datasheet
VLF504012MT-4R7M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features 4.7 µH Shielded Wirewound Inductor 1.83 A 120mOhm Max Nonstandard
Manufacturer TDK Corporation
Series VLF-M
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 445-17204-6, VLF504012MT-4R7M-ND, 445-17204-ND, 445-17204-1, 445-17204-2
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902637-VLF504012MT-4R7M
Ultra Librarian 3D Model Ultra Librarian VLF504012MT-4R7M CAD Model

Description

The TDK Corporation 902637-VLF504012MT-4R7M is a shielded wirewound inductor that has a 4.7 µH inductance and a maximum current rating of 1.83A.

  • Design: designed for use in various electronic circuits that require high inductance values and low resistance
  • Packaged: in a non-standard reel
  • Mounting: surface mountable
  • Status: obsolete part
  • Choice: popular choice due to its high quality and reliability
