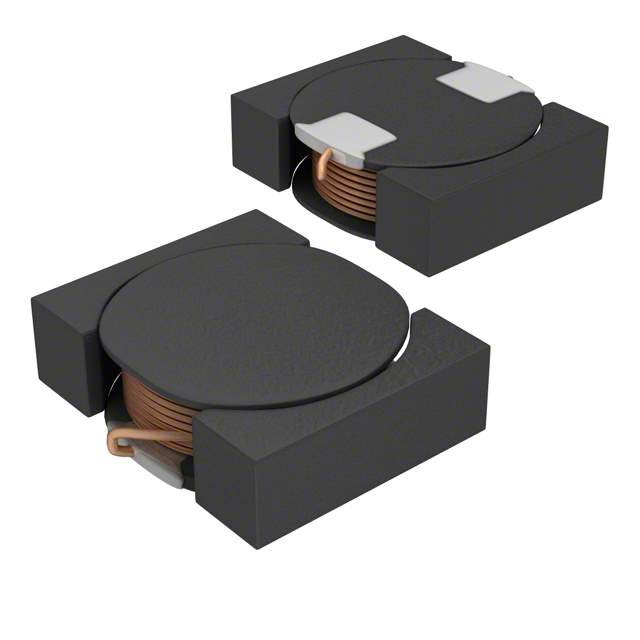

VLF504015MT-1R0N Real Image
Same model may have multiple batches, images only for reference.

VLF504015MT-1R0N

Part No VLF504015MT-1R0N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 3.61A 32 MOHM SMD / Wound Ferrite
Datasheet
VLF504015MT-1R0N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating (Amps) 3.61A
Current - Saturation 3.72A
Shielding Shielded
DC Resistance (DCR) 32mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807397-VLF504015MT-1R0N
Ultra Librarian 3D Model Ultra Librarian VLF504015MT-1R0N CAD Model

Description

The TDK Corporation VLF504015MT-1R0N is a wirewound type SMD inductor with a shielding feature.

  • Inductance: 1μH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • DC Resistance (DCR): 32mOhm Max
  • Current Saturation: 3.72A
  • Manufacturer Package: Nonstandard
  • Height - Seated (Maximum): 0.047" (1.20mm)
  • MSL Level: 1 (unlimited)
  • Current Rating (amps): 3.61A
  • Status: Obsolete (end of life)
  • Inductance Frequency Test: 1MHz
