Same model may have multiple batches, images only for reference.

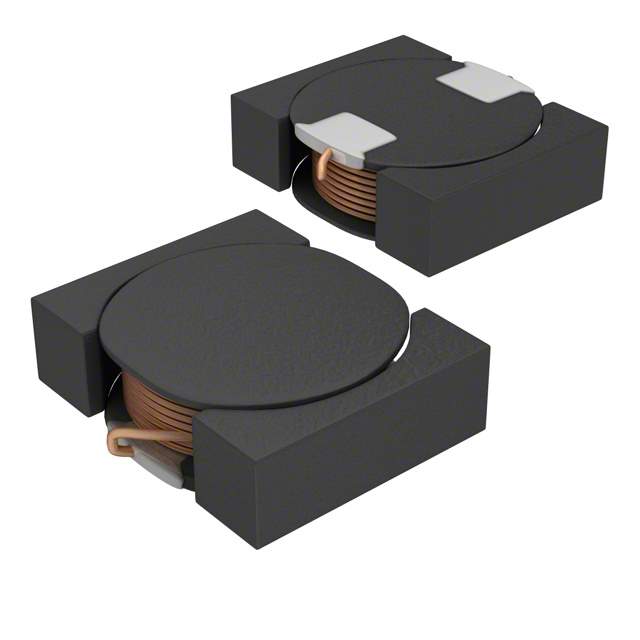

VLF504015MT-1R5N Real Image
Same model may have multiple batches, images only for reference.

VLF504015MT-1R5N

Part No VLF504015MT-1R5N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.5UH 3.27A 38 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±30%
Current Rating (Amps) 3.27A
Current - Saturation 3.42A
Shielding Shielded
DC Resistance (DCR) 38mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806852-VLF504015MT-1R5N
Ultra Librarian 3D Model Ultra Librarian VLF504015MT-1R5N CAD Model

Description

{"ProductId":745433,"FormattedDescription":"

This TDK Corporation manufactured product is a VLF504015MT-1R5N type wirewound inductor.

  • Inductance: 1.5µH
  • Current Rating: 3.27A
  • Tolerance: ±30%
  • DC Resistance (DCR): 38mOhm Max
  • Operating Temperature: -40°C to 105°C
  • Manufacturer Package: Nonstandard
  • Packaging: Reel of 1000
  • Supply and Demand Status: Balanced
  • MSL Level: 1 (unlimited)
"}
