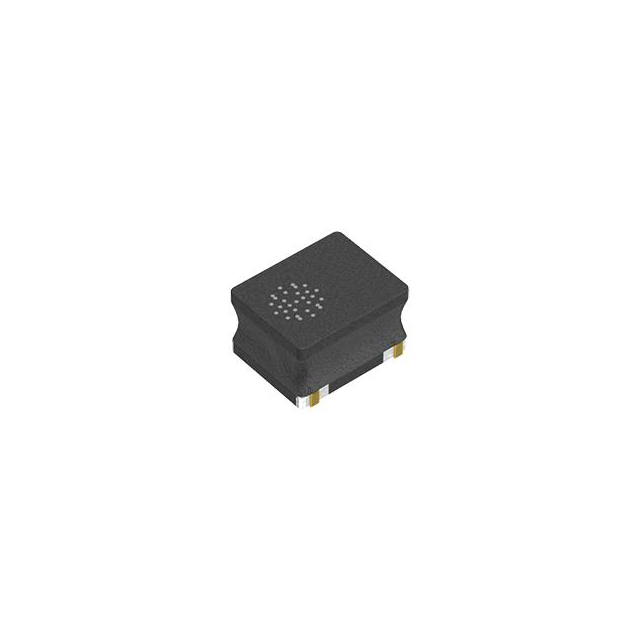

The VLS201612CX-R47M is a wire-wound chip inductor manufactured by TDK Corporation. It is designed for high-frequency applications and general electronic circuits where small size and reliable performance are crucial. The 'R47M' indicates an inductance value of 0.47 µH with a tolerance of ±20%.

Applications

• RF Circuits: Used for impedance matching and filtering in RF applications.
• Mobile Communication Devices: Found in smartphones, tablets, and other wireless devices.
• High-Frequency Applications: Suitable for use in oscillators and filters.
• Power Supplies: Used for noise suppression and filtering.
• Signal Line Impedance Matching: Improves signal integrity in high-speed data lines.

Features

• Wire-wound construction: Provides a high Q factor and excellent performance.
• Small size: Ideal for use in compact electronic devices.
• High self-resonant frequency: Suitable for high-frequency applications.
• Excellent temperature stability: Maintains stable performance over a wide temperature range.
• RoHS compliant: Meets environmental standards.

Benefits

• Improved Signal Quality: Reduces unwanted noise and interference in signal lines.
• Compact Design: Saves valuable space on the circuit board.
• Reliable Performance: Provides consistent and stable operation in various conditions.
• High Efficiency: Minimizes power loss in the circuit.
• Environmentally Friendly: Complies with environmental regulations.

Technical Specifications:

• Inductance: 0.47 µH
• Tolerance: ±20%
• Self-Resonant Frequency: 200 MHz
• DC Resistance: 0.1 Ohms
• Saturation Current: 1.0 A
• Operating Temperature Range: -40°C to +85°C
• Dimensions: 2.0 mm x 1.6 mm x 1.2 mm

The VLS201612CX-R47M is a compact and reliable inductor suitable for a variety of high-frequency electronic applications where small size and stable performance are critical requirements. Its wire-wound construction ensures a high Q factor, making it an excellent choice for RF and signal integrity applications.
