Same model may have multiple batches, images only for reference.

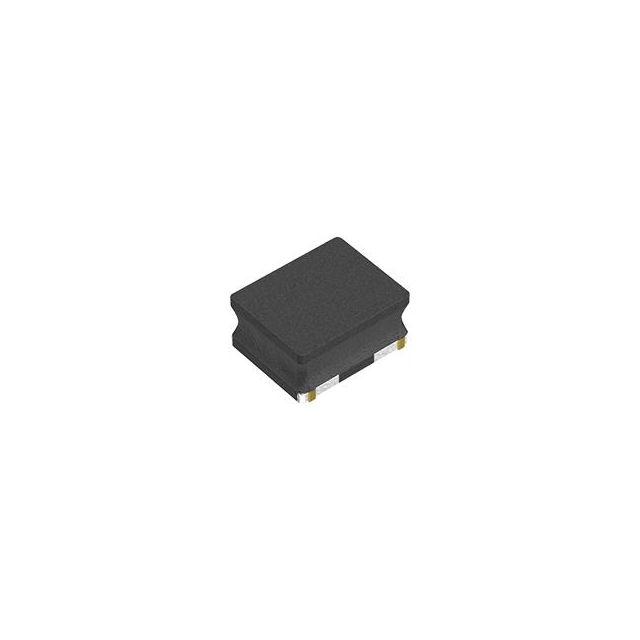

VLS252012CX-220M Real Image
Same model may have multiple batches, images only for reference.

VLS252012CX-220M

Part No VLS252012CX-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 560MA 955 MOHM
Datasheet
VLS252012CX-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 560mA
Current - Saturation 540mA
DC Resistance (DCR) 955 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 2520
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 1117245-VLS252012CX-220M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian VLS252012CX-220M CAD Model

Description

The TDK Corporation 1117245-VLS252012CX-220M is a wirewound type inductor that has a current rating of 560mA and an inductance of 22μH.

  • Height: 0.047 inches
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Current Saturation: 540mA
  • DC Resistance (DCR): 955 mOhm Max
  • Category: Inductors, Coils, Chokes
  • Popularity: Medium
  • Status: Active
  • Temperature Range: -40°C to 105°C
  • Case/Package: 2520
  • Quantity per Package: 2k pcs
