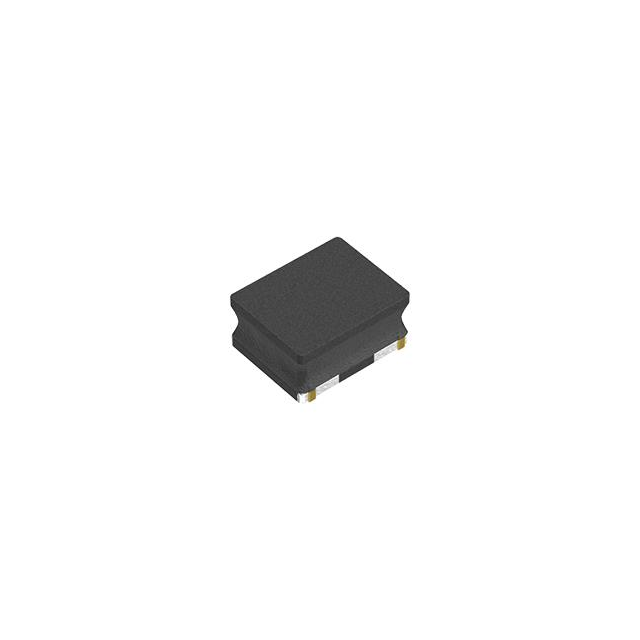

VLS252012CX-2R2M Real Image
Same model may have multiple batches, images only for reference.

VLS252012CX-2R2M

Part No VLS252012CX-2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.87A 96 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.87A
Current - Saturation 1.76A
DC Resistance (DCR) 96 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 2520
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 1117246-VLS252012CX-2R2M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian VLS252012CX-2R2M CAD Model

Description

The TDK Corporation VLS252012CX-2R2M is a wirewound inductor with a ferrite core.

  • Current Rating: 1.87A
  • Inductance: 2.2μH
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • DC Resistance (DCR): 96 mOhm Max
  • Operating Temperature: -40°C to 105°C
  • Case: 2520
  • Packaging: Reel (2k pieces)
