Same model may have multiple batches, images only for reference.

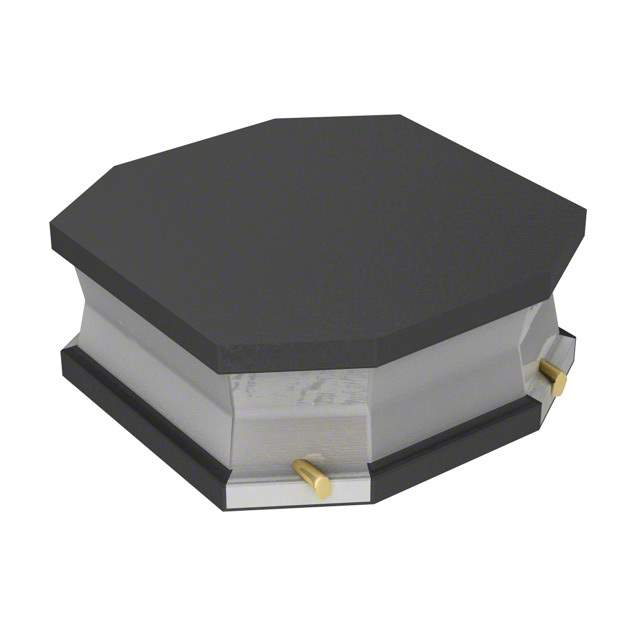

VLS3012ET-220M Real Image
Same model may have multiple batches, images only for reference.

VLS3012ET-220M

Part No VLS3012ET-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 440MA 756 MOHM
Datasheet
VLS3012ET-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 440mA
Current - Saturation 440mA
DC Resistance (DCR) 756 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 054531-VLS3012ET-220M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian VLS3012ET-220M CAD Model

Description

The TDK Corporation 054531-VLS3012ET-220M is a wirewound inductor that has an inductance of 22µH and a current rating of 440mA.

  • Mounting: surface-mounted
  • Tolerance: ±20%
  • Applications: power supplies, filtering circuits, and energy storage circuits
  • Packaging: reel package
  • Supply and demand: balanced
